Introduction

What is extracorporeal life support and extracorporeal membrane oxygenation?

Extracorporeal life support (ECLS) describes prolonged cardiopulmonary bypass providing hemodynamic and respiratory support in critically ill patients who cannot be supported by conventional measures. ECLS and extracorporeal membrane oxygenation (ECMO) are often used interchangeably. ECMO was first reported in the 1970s and the term has remained [1]. Since support includes more than just oxygen delivery, ECLS is now the preferred terminology. Patients on ECLS receive improved O2 delivery and CO2 removal with augmentation of cardiac output and support of hemodynamics. Unlike a bypass pump used in cardiac surgery, ECLS provides prolonged support for days to weeks. In its simplest form, during ECLSdeoxygenated blood is removed from the patient, perfused through a porous membrane (the oxygenator) where gas exchange occurs, a heat exchanger which warms the blood, followed by return of warmed, arterialized blood to the patient.

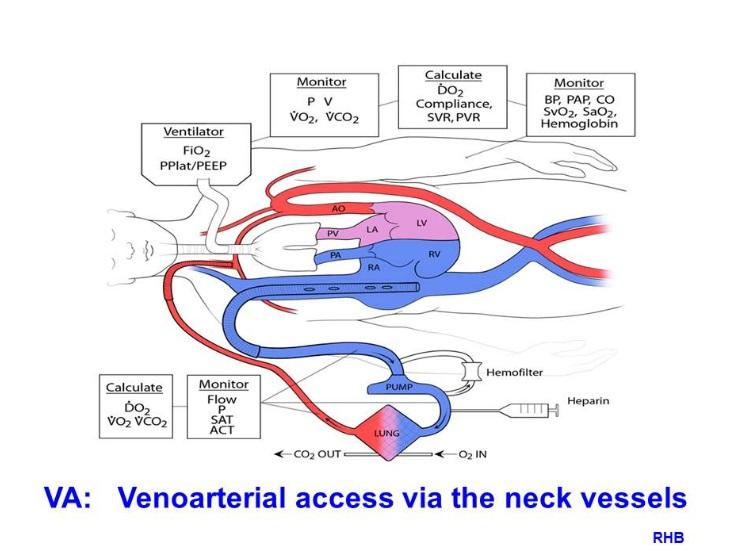

simplified venoarterial ECLS circuit

Simplified venoarterial extracorporeal life support circuit showing basic components of pump, oxygenator, heat exchanger and cannulas taking flow both to and from the patient. (image courtesy of the Extracorporeal Life Support Organization)

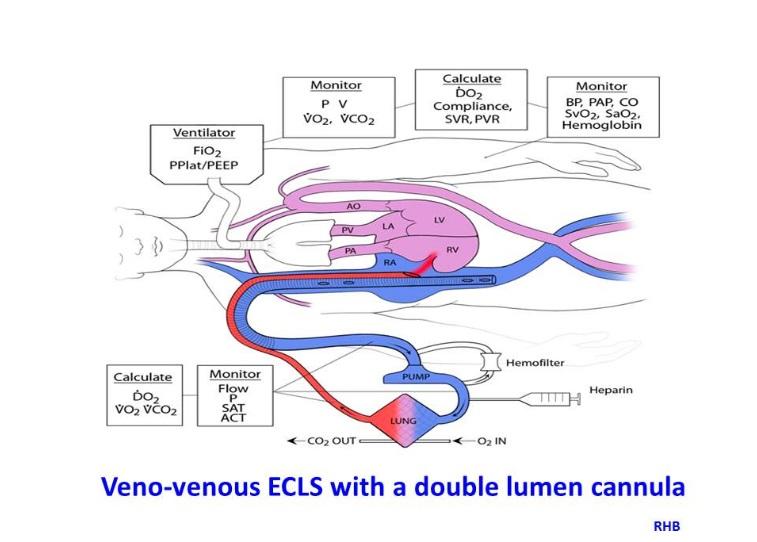

simplified venovenous ECLS Circuit

Simplified venovenous extracorporeal life support circuit showing basic components of pump, oxygenator, heat exchanger and cannulas taking flow both to and from the patient. (image courtesy of the Extracorporeal Life Support Organization)

What is the goal of extracorporeal life support?

ECLS is a supportive therapy and not designed to cure the underlying disease [2]. While its use is expanding to include more complex patients, it should not be used in patients with irreversible pathology. The goal of ECLS is to support respiratory and cardiovascular function while resting the heart and lungs and providing improved oxygen delivery to end organs while the patient recovers. It allows for lung protective strategies, thus minimizing secondary injury from barotrauma, volutrauma or ongoing hypoperfusion. While neonates used to comprise the largest number of patients benefiting from ECLS in cases of severe respiratory failure, by far adult ECMO for respiratory failure forms the largest cohort each year. Typical neonatal problems which result in respiratory failure that requires ECMO include persistent pulmonary hypertension of the newborn, meconium aspiration, respiratory distress syndrome , sepsis, pneumonia, air leak syndrome, and congenital diaphragmatic hernia. Pediatric ECLS is generally used in the acute respiratory distress syndrome (ARDS) associated with viral or bacterial pneumonia and profound septic shock from other etiologies [3].

What is the Extracorporeal Life Support Organization?

Extracorporeal life support organization (ELSO) is a collaborative, voluntary registry established in 1989 to gather data on use of ECLS across the globe. As of 2015 there were over 250 ELSO members with chapters in Europe, Latin America, South, West and Pacific Asia. The registry provides semiannual reports on the use and complications of ECLS across the registry and individual centers [4]. Data can be queried to answer clinical questions addressing mechanical and procedural concerns. ELSO has established guidelines for equipment use, set up and maintenance, transport of patients on ECMO, infection control and anticoagulation and training of personnel in new ELSO centers. Quality improvement initiatives have expanded since its inception and ELSO now provides center of excellence awards to institutions with exceptional outcomes. Moreover, it delivers data to individual centers to help them benchmark their outcomes against those in the remainder of the registry. Finally, ELSO provides comparative data used for regulatory device approval such as ventricular assist devices and has contributed to the Current Procedural Terminology (CPT) and International Classification of Diseases (ICD) codes used for the surgical and medical care of ECLS patients.

see also Cannulation for ECLS

Content in this topic is referenced in SCORE Extracorporeal Life Support overview

Epidemiology

How has extracorporeal life support changed?

As of January 2016, 73,596 patients had been placed on extracorporeal life support(ECLS) internationally, of which 36,246 were neonates and 18,019 were older children. The number of registered ELSO centers and their yearly use of ECLS have increased precipitously in this last decade to 298 centers and 6,177 cases/year, respectively. This is particularly true for the last five years following the H1N1 epidemic of 2009 which saw a marked improvement in survival of patients treated with extracorporeal membrane oxygenation (ECMO) over those receiving conventional support [5]. While some of this trend is due to renewed enthusiasm about outcomes of extracorporeal support, the availability of simpler and safer equipment has truly revolutionized the way we think about ECMO. Nearly each component of the ECLS circuit has been re-engineered resulting in simpler and safer runs. Smaller and more compact circuits are now available as are highly efficient double lumen cannulas and oxygenators and both have simplified intra- and interfaciltiy transport on ECLS. We can now bring the technology to the patient, rather than transporting an unstable patient in hopes that they survive to cannulation. Magnetically levitated centrifugal pumps and pediatric specific circuit components (e.g. smaller, microporous, hollow fiber oxygenators) allow for small priming volumes, thus decreasing hemodilution and bleeding in small patients. Shorter tubing lengths and newer oxygenator designs have decreased rapid pressure changes - particularly in neonates. Improvement in pressure and flow monitoring technology has provided more acute, minute to minute information, making longer runs safer [2][6].

Despite these advances, the challenges of anticoagulation continue to plague many ECLS runs due to both thrombotic and bleeding events. The optimal anticoagulant and means of anticoagulation monitoring remain debated in the ELSO community [7].

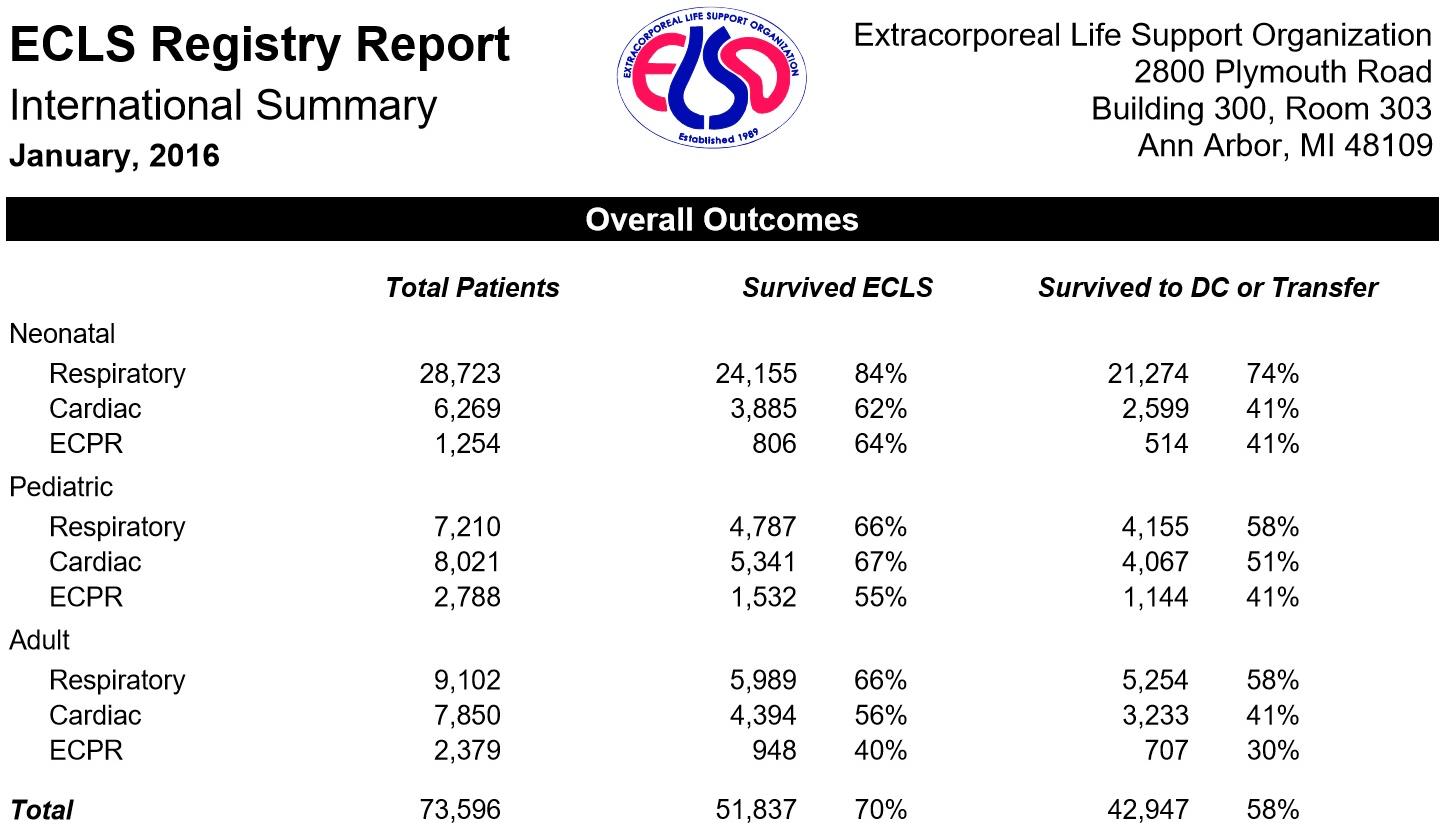

2016 ELSO summary

Summary of International ELSO Registry data as of 2016. (from the ELSO International Registy report, January, 2016)

What have been the changes in the indications for extracorporeal life support over the last ten years?

With the advent of new technology and rising experience with ECLS, the indications for ECMO have expanded to include more complex patients. In the neonatal population, the number of respiratory runs has dramatically decreased from 1,516 in the at its peak in 1992 to 878 in 2014, likely due to the advent of iNO and other treatment modalities for neonatal respiratory failure.

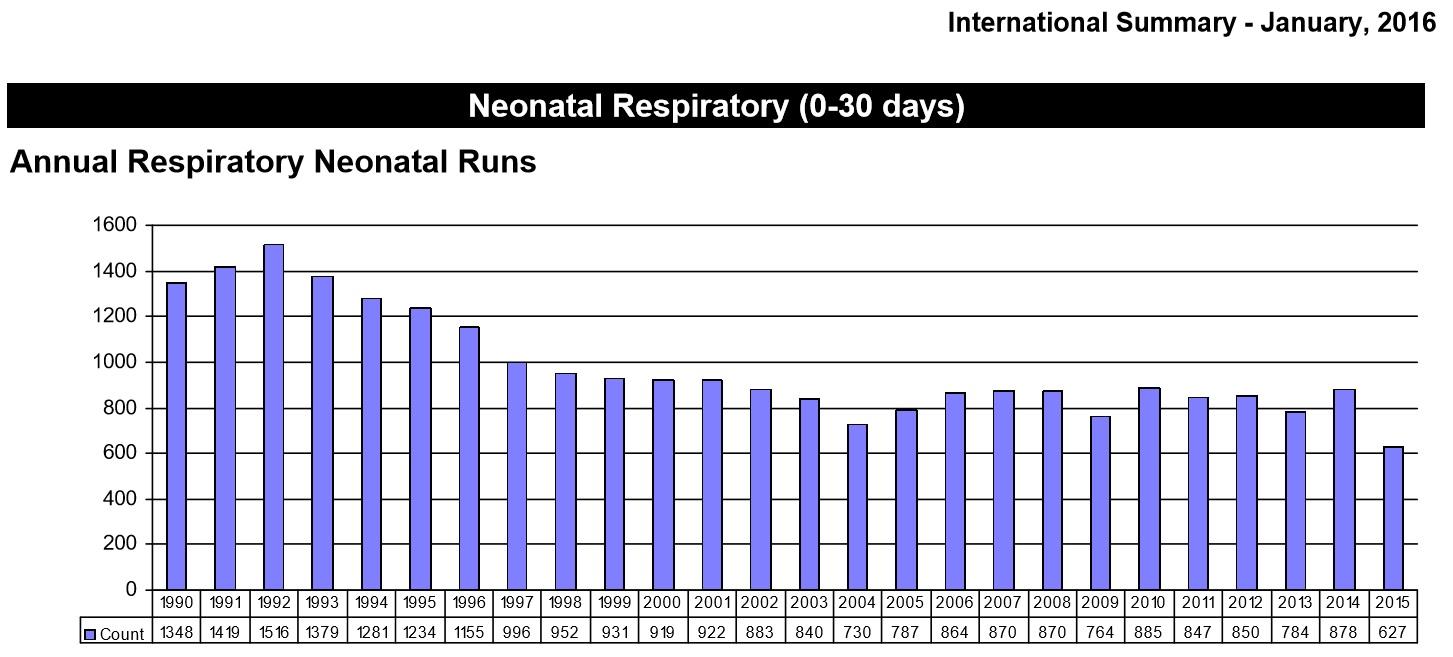

neonatal ECLS runs for respiratory failure

These data demonstrate the number of neonatal ECLS runs for respiratory failure by year. Note the peak in 1992 such that the current number of cases/year are approximately fifty percent of the peak. (rom the ELSO International Registy report, January, 2016)

The overall survival has decreased as ECLS has been used in more complex patients.

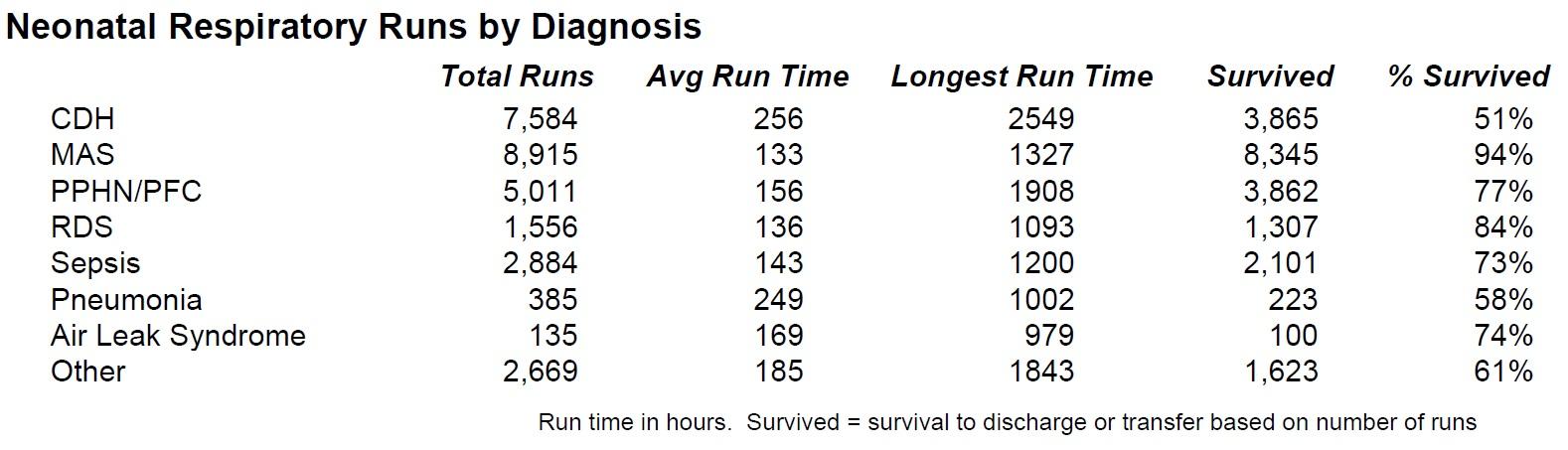

neonatal respiratory runs by diagnosis

These ELSO data demonstrate the number of ECLS cases in neonatal respiratory failure patients as a function of diagnosis. (from the ELSO Registry Report, January, 2016)

The number of pediatric respiratory runs has increased steadily from 142 in 1992 to 486 in 2014 with a slow increase in the survival to 61% by 2014. A significant peak was seen in this population during the H1N1 epidemic as survival mirrored that of the adult population.

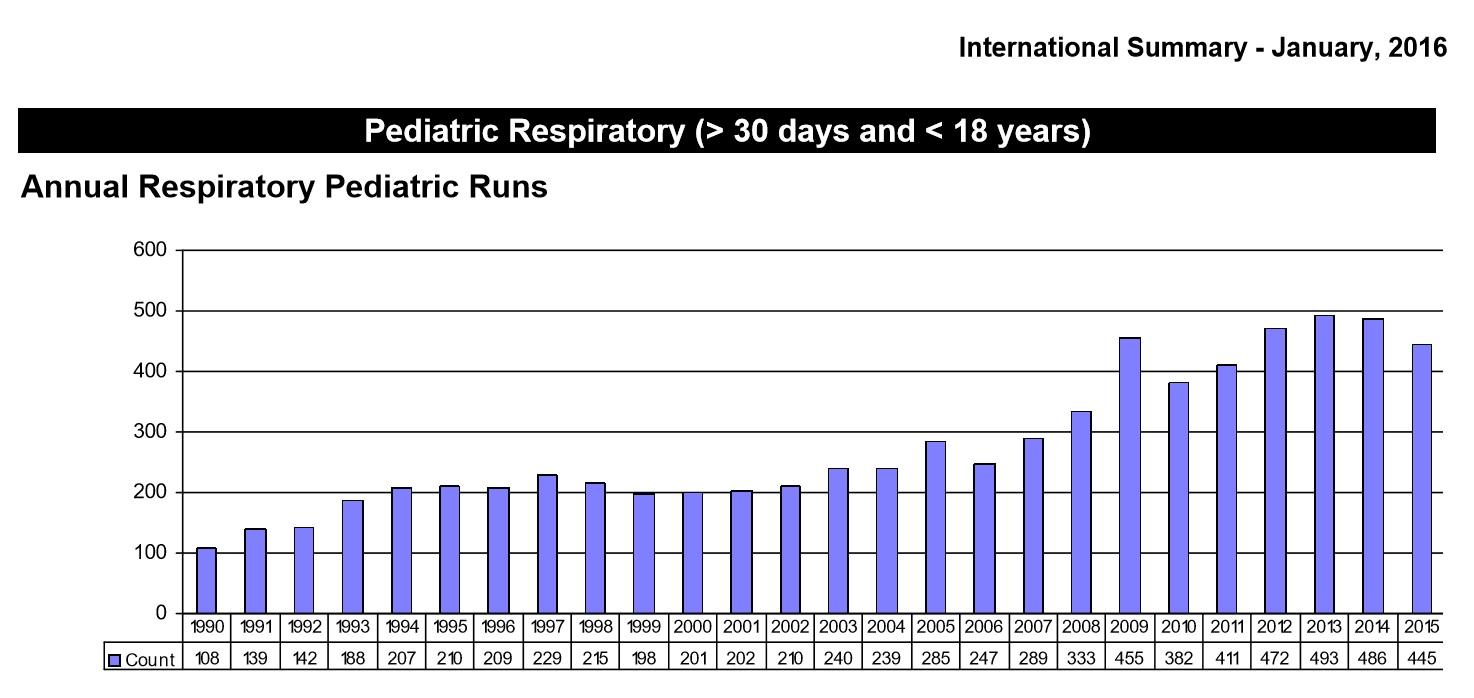

pediatric ECLS respiratory failure

These data demonstrate the yearly pediatric respiratory failure cases placed on ECLS per the ELSO Registry. Note the peak in 2009 at the time of the H1N1 epidemic. (from the ELSO International Registy report, January, 2016)

The majority of pediatric respiratory failure cases were due to the acute respiratory distress syndrome (ARDS) and non-ARDS respiratory failure or acute respiratory failure associated with viral or bacterial pneumonia.

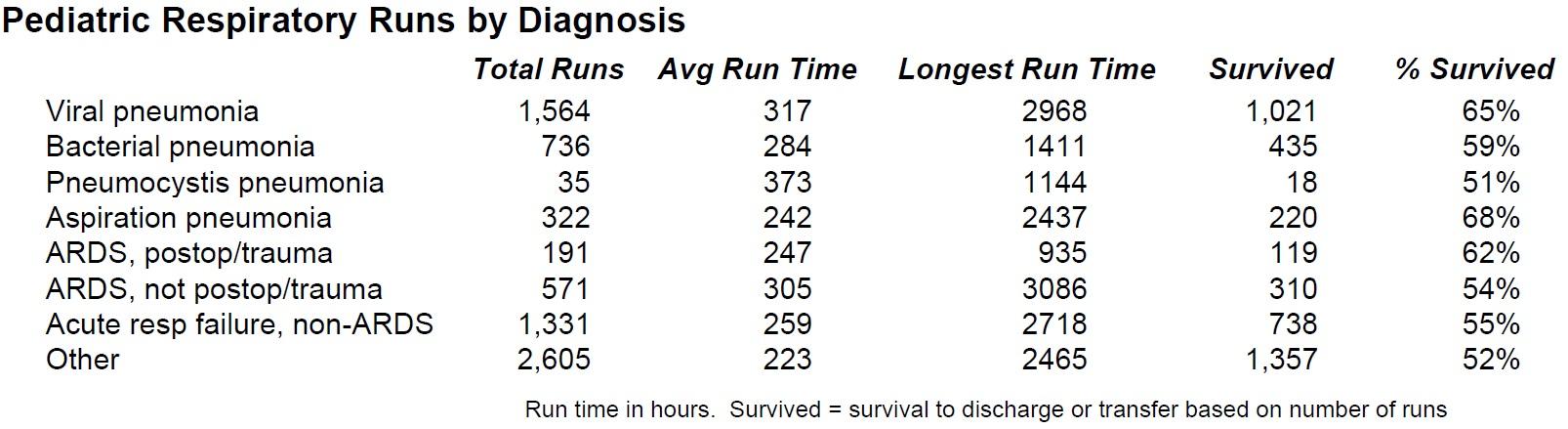

pediatric respiratory runs by diagnosis

These ELSO data demonstrate the number of ECLS cases in pediatric respiratory failure patients as a function of diagnosis. (from the ELSO Registry Report, January, 2016)

The number of neonatal cardiac runs slowly rose in the early 2000s, but has remained relatively steady in the 400 to 450 per year range over the last few years.

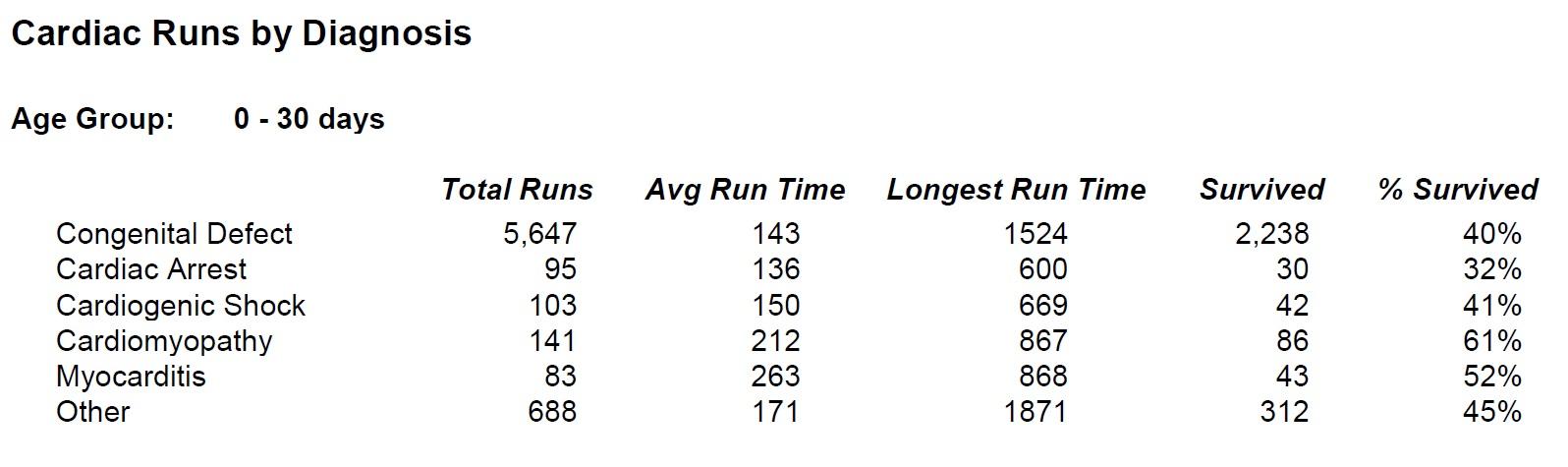

cardiac ECLS By diagnoses 0-30 days

These data demonstrate the number of ECLS cases by diagnosis among patients age 0 to 30 days of age with cardiac failure. (from the ELSO International Registy report, January, 2016)

Pediatric cardiac runs remain steady at about 550 per year. The vast majority of these are in patients with congenital heart disease (over 5,000 to date) in children age thirty days to sixteen years of age.

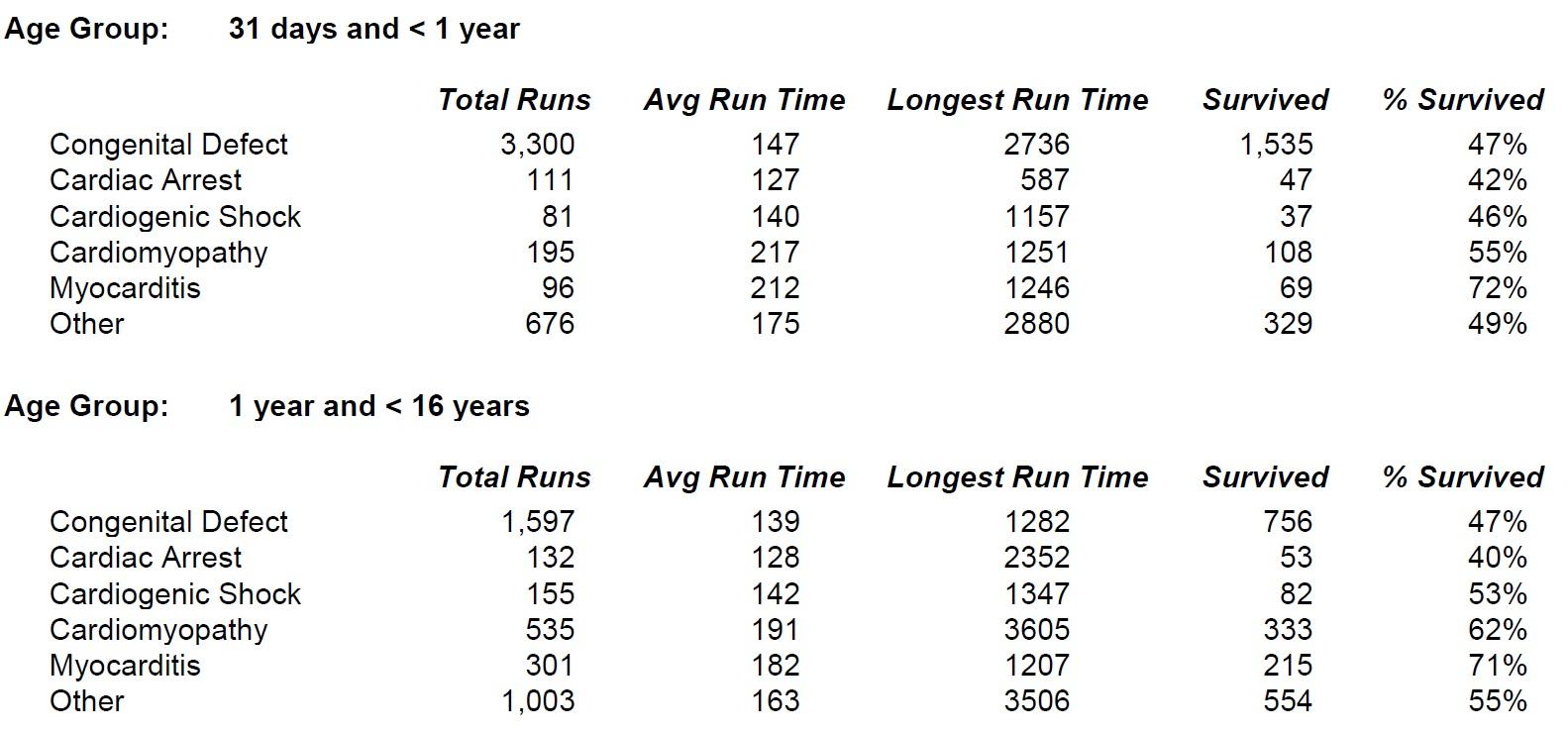

cardiac ECLS by diagnosis 30 Days to < 16 Years

These data demonstrate the number of ECLS cases by diagnosis among patients age 30 days to less than 16 years with cardiac failure. (from the ELSO International Registy report, January, 2016)

Cystic fibrosis patients and those with severe ARDS have become more recent candidates for ECLS for bridge to transplant and the management of primary graft dysfunction following lung transplantation [8][9]. Pretransplant rehabilitation with early initiation of ambulatory venovenous ECMO has resulted in excellent post-transplant outcomes [10][11]. While this cohort of patients is relatively small, the strategies of awake and ambulatory care have become more common in the management of pediatric ARDS patients on ECMO leading to less deconditioning and better recovery or reduced disability at the time of lung transplantation.

Basic Science

What are the elements of oxygen dynamics on extracorporeal life support?

The basics of oxygen dynamics are reviewed in detail in the Respiratory Care and Surgical Infection topics. The venous oxygen saturation (SvO2) on extracorporeal life support (ECLS) is an important measure of the relationship between oxygen delivery (DO2) and consumption (VO2) . A low SvO2 indicates either inadequate O2 delivery or excessive consumption. In taking care of a patient on ECLS it is important to optimize the components of delivery and minimize the components of consumption. On ECLS, maneuvers to maximize oxygen delivery include maintaining the hematocrit, using an appropriately sized membrane lung and increasing the flow rate. Minimizing consumption with paralytics, sedatives or antibiotics may help to maintain the SVO2 toward a normal of 75% [12][13].

What are the elements of gas exchange on extracorporeal life support?

As in normal physiology, gas exchange on ECLS consists of both oxygen delivery and CO2 removal. In ECLS, the membrane lung is responsible for gas exchange. Gas flows down a diffusion gradient dependent on the partial pressure of the gas in the blood and the membrane lung. Gas flow to the membrane lung is regulated by a flow meter and gas blender. Gas running through the oxygenator is the sweep gas [13][14].

CO2 removal depends on the gas diffusion gradient, the sweep gas flow rate and the membrane surface area. The diffusion gradient is contingent upon the relative CO2 concentration on either side of the membrane (i.e. the gradient between the venous blood and the ventilating gas). The gas flow rate or the sweep rate equates to the speed in which the air in the membrane is exchanged with new air. Consequently, a high sweep rate will clear the CO2 faster due to the higher gradient. A lower sweep rate will lessen the gradient as CO2 is removed less rapidly from the membrane lung. CO2 removal also depends on the surface area of the membrane. A greater surface area gives greater C02 clearance by allowing more blood to interact with gas. Unlike oxygen, CO2 removal is not dependent on flow rate of blood through the circuit. The diffusion of CO2 through the membrane of the artificial lung is so rapid that equilibrium is almost instantaneous [13].

Oxygen delivery on ECLS is determined by blood oxygenation in the membrane lung, flow through the circuit, oxygen uptake through the native lung and cardiac output [15]. As with CO2, the relative amounts of oxygen in the blood versus the gas phase in the membrane lung is one factor in determining the oxygen exchange from gas to blood. In addition, the oxygen solubility in plasma (i.e,. the ease with which oxygen diffuses through blood) is important. As blood enters the membrane lung, the first red blood cells will become saturated with oxygen. As it advances through the membrane, oxygen will diffuse through the plasma to saturate more blood [14]. Time must be allotted for this to happen. If blood passes too quickly through the gas exchange area there will not be enough time to fully saturate the blood. In fact, if the pump flow rate is increased in an attempt to increase oxygenation the SO2 may decrease (although oxygen delivery will likely stay the same). The pump flow at which maximal oxygen delivery is met is called the rated flow and is unique to each oxygenator. Specifically, the rated flow is defined as the flow at which blood enters with an SO2 = 75% and leaves at an SO2 = 95% [13][14].

As with CO2 removal, the surface area of the oxygenator affects the amount of blood exposed to oxygen at any given time. For any given membrane, diffusion characteristics, surface area and blood path thickness are relatively fixed.

What are the physiologic principles of extracorporeal life support?

The goal of ECLS is to improve tissue oxygen delivery and remove carbon dioxide allowing normal aerobic metabolism to continue while resting the lung and, in venoaterial (VA) extracorporeal membrane oxygenation (ECMO), the heart. This is achieved by draining venous blood and providing gas exchange through an artificial lung, warming the blood via a heat exchanger, and returning the blood to the body through a vein or artery.Since gas exchange is performed by the membrane lung, the conventional ventilator pressures and oxygen can be reduced, adjusted and in certain circumstances the patient can even be extubated.

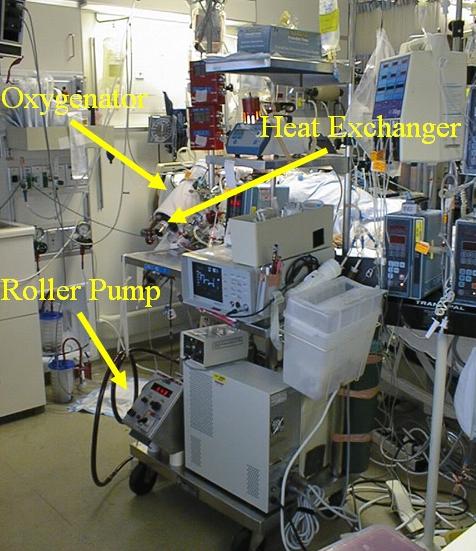

extracorporeal life support circuit

The image demonstrates an extracorporeal life support circuit with a roller pump, oxygenator and an integrated heat exchanger.

In VA bypass the function of the lung and heart are taken over by the machine. Blood is drained via a vein and passes through the circuit where oxygen is added, carbon dioxide is removed, and the blood is warmed. It is returned to the aorta and mixes with the remaining blood being pumped from the left ventricle. Nearly all of the venous return can be drained into the circuit. In fact, unless limited by the size of the venous cannula, the maximum flow is a good estimate of intravascular volume: if a patient is dehydrated, the maximum flow will not reach expected levels.

Total cardiac output is the native heart output plus the bypass flow rate. The hemoglobin saturation is determined by native lung function and the rate of bypass flow. The blood from the circuit should have a saturation of 100%. This may drop as a consequence of poorly saturated blood leaving the patient’s diseased lungs mixing with the circuit blood. Nevertheless, if most of the blood is passing through the circuit the saturation should still be 95 to 100% [12][13].

VA ECMO also provides hemodynamic support. With mixed SvO2 monitoring, the oxygen delivery to consumption ratio can be continuously adjusted. A low SvO2 means either inadequate delivery or excessive consumption. The components of oxygen delivery need to be optimized and components of consumption need to be minimized. This is accomplished by transfusion to an adequate hematocrit, delivering more blood through an appropriate size oxygenator and increasing the flow rate to enhance cardiac output. Paralytics, sedatives, antibiotics or hypothermia can be used to minimize oxygen consumption and to achieve an SvO2 of 75% [1]. (see Respiratory Care Pathophysiology)

In venovenous (VV) bypass, the patient’s heart is used to pump the returned blood from the circuit through the body. The oxygenated blood returning from the circuit to the right atrium mixes with the deoxygenated blood already in the right atrium. This mixed blood may either be returned to the circuit or may be pumped into the systemic circulation by the patient’s heart. The infused ECMO circuit blood that is returned to the ECMO circuit is termed recirculation. When a high proportion of blood that is infused from the ECMO circuit is recirculated, the pre-oxygenator blood may have a very high oxygen saturation (e.g. 80 to 90%). The problem under those circumstances is that the amount of oxygen which can be added to the blood by the gas exchange device is low and SaO2 may be adversely affected. The recirculation can often be reduced and the cannula function optimized by adjusting the position of the cannula. Because of recirculation, ECLS gas exchange is not as efficient during VV ECMO. As a result, SaO2 is often lower and it is acceptable to maintain arterial saturation at 80 to 90%. As long as cardiac output is adequate, oxygen delivery will be more than adequate to prevent acidosis and oxygenate the peripheral tissues [12][13].

In many centers, as the lung recovers, the flow in the ECMO circuit is decreased to let more blood pass through the native lungs while oxygenation is maintained. Otherwise, a blender is used to reduce the FiO2 of the sweep flow so that the PaO2 is maintained at reasonable levels. CO2 removal is much more efficient than oxygenation. Higher blood flow rates are not necessary to extract CO2 in the membrane lung if CO2 removal is the main objective. The sweep flow is adjusted to keep the PaCO2 in a physiologic range. On occasion, the patient will be hypocarbic despite the sweep flow being reduced to minimum levels. Under those circumstances, carbogen (5% CO2 and 95% O2) may be added to the sweep flow gas in small amounts [14].

How does the circuit interact with the native cardiovascular system?

The ECMO circuit is primed initially with CO2, which more easily dissolves in fluid than air (nitrogen), and then with saline. In newborns, this saline prime is then displaced by one to two units of packed red blood cells. The hematocrit of the pump prime should be 35 to 40%. A saline prime can be used to start ECLS in older children and adults with subsequent transfusions used to reach the desired hematocrit. Maintaining a normal hematocrit is important. If the patient is anemic, higher pump flows will be necessary for adequate oxygen delivery. Giving fluid as opposed to blood exacerbates anemia and contributes to more edema [1][14].

ECMO blood flow is nonpulsatile. As the pump flow increases, the arterial wave form will become flatter and eventually become completely flat as one approaches total bypass. As long as the flow is adequate there is no evidence that there is a physiologic difference between pulsatile and nonpulsatile perfusion. The left ventricle may fill with blood from small amounts of native cardiopulmonary blood flow as well as drainage from bronchial and thebesian veins. Although the heart may attempt to contract, the ECMO flow presents substantial afterload to the left ventricle. As a result, the heart may be unable to open the aortic valve and eject blood. As a result, the left ventricle will distend and need to be decompressed. This can be done with a trans-septal atriotomy performed in the cath lab, sometimes with a cannula placed through the atriotomy. In some circumstances, a thoracotomy with direct cannulation of the left atrium or ventricle may be performed [13].

Oxygen delivery on ECLS begins with the oxygenator. The oxygenator variables are the geometry, thickness of the blood phase, membrane material and thickness and blood flow rate. The rated flow of each particular oxygenator takes into consideration all the above variables. As long as the ECMO blood flow is less than the rated flow of the oxygenator (rated flow = flow at which blood with a Hgb of 12 mg% enters with an SO2 of 75% and leaves at an SO2 of 95%) and the venous saturation is greater than 75%, the blood leaving the circuit will be near fully saturated. Oxygen delivery is then controlled by hemoglobin and blood flow [13][14].

What limits flow in the circuit?

Poiseulle’s Law states that with the movement of a gas or fluid through a tube, at a constant pressure the flow of the gas or fluid will vary directly with the fourth power of the radius of the tube.

Poiseuille's Law

Therefore, a smaller diameter tube requires a greater pressure to move a given volume: in other words, the resistance to flow is higher. This is the same with a longer tube although not to the same degree. Accordingly, blood flow is limited by the size of the venous drainage cannula. The best cannula is the shortest and largest diameter that can fit into the vein. There is also resistance across the oxygenator and in the reinfusion cannula. The pump delivers the desired flow and post pump pressures are monitored. Pressures as high as 300 mm Hg can be tolerated, although the higher the pressure the greater the risk of circuit disruption.

The French size of the catheter doesn’t completely reflect its flow characteristics as catheters have irregular internal diameters and side holes. Therefore, an M number is assigned to each specific catheter. This gives the pressure and flow relationship of each cannula [16]. Once the M number is known, a nomogram may be used to determine whether a given cannula will provide sufficient flows for a patient given the anticipated pressure gradient across the cannula.

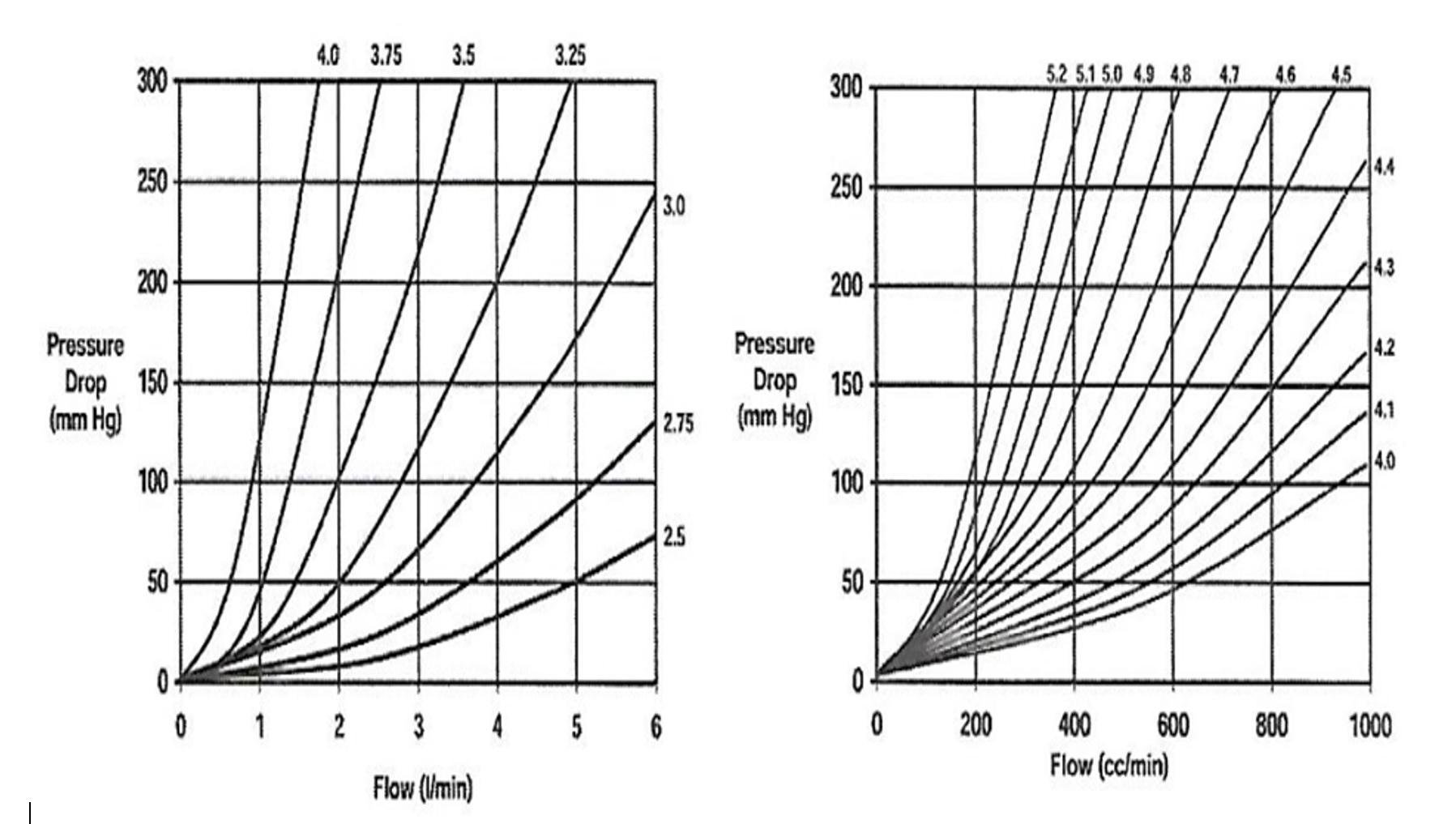

M number nomogram

If one knows the M number of a cannula and the expected pressure drop across the cannula, one can predict the maximum flow that the cannula will allow. This is most important for the venous cannula which is often the limiting factor for ECMO flow. (from Bartlett RH. Physiology of ECLS. In ECMO: Extracorporeal Cardiopulmonary Support in Critical Care. ELSO Publisher. Van Meurs, KV, et al., editors. 3rd additon, 2005)

M numbers of ECLS cannulas

These are the M numbers of commonly used cannulas for venous cannulation. (from Pranikoff T and Hines MH. Vascular Access for Extracorporeal Support. In ECMO: Extracorporeal Cardiopulmonary Support in Critical Care. ELSO Publisher. Van Meurs, KV, et al, editors. 3rd additon, 2005)

General guidelines to VA and VV cannulation are provided:

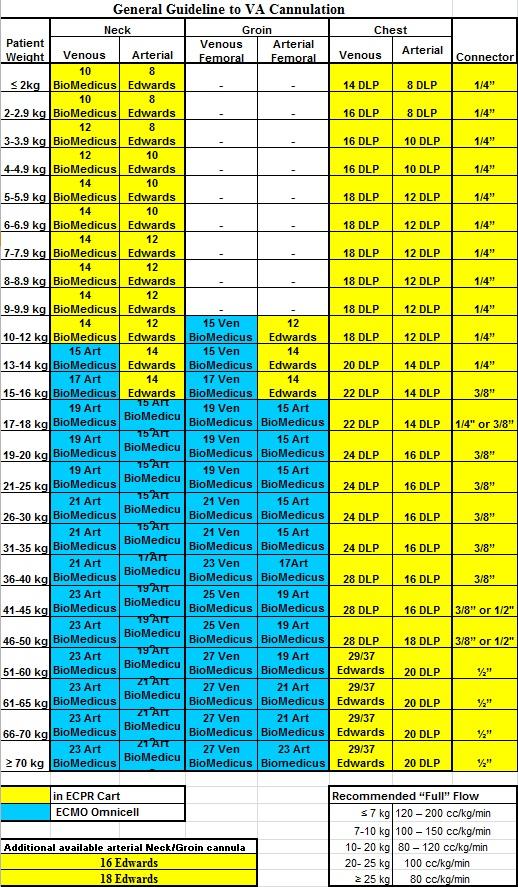

guidelines to venoarterial cannula

These are suggestions for venoarterial cannula size as a function of patient weight. (from Michael McMullen, M.D. Seattle Children’s Hospital)

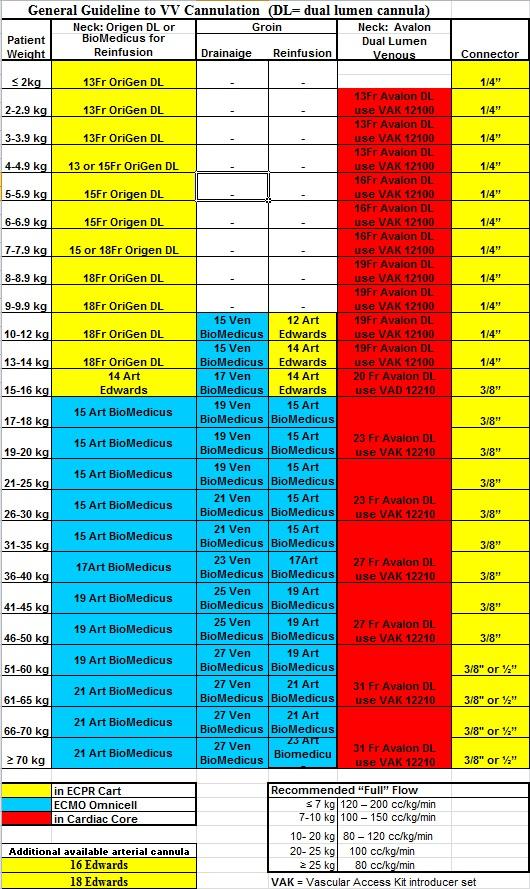

guidelines to venovenous cannula

These are suggestions for venoveous cannula size as a function of patient weight. (from Michael McMullen, M.D. Seattle Children’s Hospital)

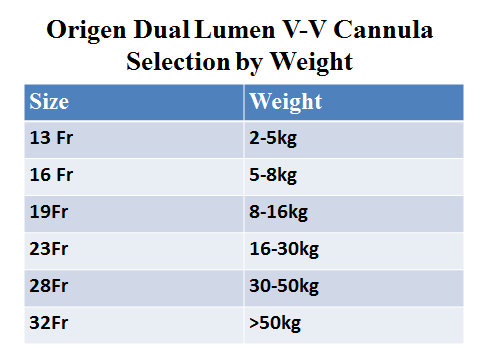

Origen venovenous cannulas

Patients require pump flows of 80 to 120 mL/kg/min for full ECMO support with neonates requiring the higher and late adolescents the lower rates. If the cannulae are too small, the circuit cannot provide adequate flow [13][14].

see Cannulation for ECLS Surgical Decision Making

Anatomy

see Cannulation for ECLS Anatomy

Medical Treatment

Indications

What are the indications for extracorporeal life support?

Extracorporeal life support (ECLS) is used in patients with pulmonary and/or cardiac failure. Often chosen once the patient has been unresponsive to other modalities, ECLS should only be used for support of a reversible cause of cardiorespiratory failure or when there is a reasonable exit strategy from ECLS. Furthermore, the longer the patient remains on elevated ventilator settings or cardiac support, the less reversible the condition becomes. Therefore, deciding early in the course of an illness if the patient requires ECLS increases the likelihood of being weaned off ECLS[17][18].

Several objective criteria are followed for determining whether a patient needs ECLS including the oxygenation index (OI), alveolar-arterial oxygen difference and ventilation index in patients with respiratory failure[19]. It should be recognized that these criteria may need to be altered as enhancements in care and institutional capabilities develop over time.

The oxygenation index (OI) is calculated as follows:

OI = (MAP x FiO2 x 100)/PaO2

where FiO2 is the fraction of inspired oxygen, MAP is the mean airway pressure and the PaO2 is the arterial oxygenation

OI is measured in three postductal arterial gases, each drawn one half to one hour apart. A value > 40 is suggestive of 80% mortality and served as the indication in the early years of ECLS. It has been suggested that initiating ECLS with OI > 25 may have more favorable neurological and functional outcomes [19][20]. More recently, an approach has been adopted by some centers wherein initiation of ECLS is considered in patients with OI > 25 and initiated when the OI is > 40 .

The alveolar-arterial oxygen difference [(A-a) DO2] is the difference in the level of oxygen between the alveoli and the capillaries. A level greater than or equal to 610 Torr despite eight hours of maximal management is associated with a mortality of 79% [20][21][22].

A ventilation index (respiratory rate x PaCO2 x peak inspiratory pressure/1000) >40 along with an oxygenation index > 40 is associated with a 77% chance of mortality in children with respiratory failure.[19]

Special consideration must be given to those patients that are on modes of ventilation other than conventional ventilator support (e.g. high frequency jet ventilation, high frequency oscillator ventilation) [23]. With these modes, there are alterations in the relationship between mean airway pressure, gas exchange and survival [24]. However, the principle is still that of criteria which allow early recognition of a deteriorating condition.

The indications and contraindications for ECLS have evolved over time. Generally, patients are placed on ECLS for failure of ventilation, oxygenation or perfusion and broadly categorized into respiratory failure, cardiac failure or shock [25]. In general, pulmonary support is provided via veno-venous (VV) ECLS; cardiac or cardiopulmonary support via veno-arterial (VA) ECLS; and emergent support of a patient in shock via ECPR[26]. The disease states for which ECLS is instituted for neonatal and pediatric respiratory failure is demonstrated.

neonatal respiratory runs by diagnosis

These ELSO data demonstrate the number of ECLS cases in neonatal respiratory failure patients as a function of diagnosis. (from the ELSO Registry Report, January, 2016)

pediatric respiratory runs by diagnosis

These ELSO data demonstrate the number of ECLS cases in pediatric respiratory failure patients as a function of diagnosis. (from the ELSO Registry Report, January, 2016)

Previous contraindications to ECLS have been re-evaluated and the criteria for inclusion broadened. Originally, an estimated gestational age less than 34 weeks, intraventricular hemorrhage (IVH), mechanical ventilation pre-ECLS greater than seven days and cardiac arrest were considered contraindications to ECLS. However, these criteria have been relaxed.

  • in the preterm newborn, estimated gestational age greater than thirty weeks and birth weight greater than 1.5 kg demonstrate reasonable outcomes, although cannulation is still a limitation
  • intraventricular hemorrhage (IVH) with grade II IVH or less are candidates for ECLS with close surveillance of the bleed
  • mechanical ventilation pre-ECLS less than fourteen days are candidates for ECLS
  • cardiac arrest is not considered a contraindication in many centers that practice ECPR

Relative exclusion criteria are the presence of irreversible multiorgan system failure, congenital diaphragmatic hernia with severe pulmonary hypoplasia, major burns, severe immunodeficiency, active bleeding, congenital cardiac anomalies that are not amenable to surgical repair and the presence of an incurable disease process.

In those pediatric patients with cardiac failure, initiation of ECLS is based on clinical criteria including compromise of perfusion as indicated by oliguria (urine output less than 0.5 mL/kg), metabolic acidosis and hypotension despite aggressive treatment. Pediatric cardiac patients are placed on extracorporeal membrane oxygenation (ECMO) for cardiac arrest (20%), cardiogenic shock (20%), acute deterioration (10%) and an inability to be weaned from operating room bypass (20%).

What are the ethical issues surrounding extracorporeal life support?

Questions remain as to whether ECLS is effective in enhancing outcome in patients with cardiorespiratory failure. One reason is that many of the trials that have been undertaken evaluating effectiveness of ECLS have used adaptive approaches because of the ethics of withholding a lifesaving management approach. For example, Bartlett et al utilized a play the winner randomization strategy in evaluating ECLS for newborn respiratory failure [27]. Standard randomization was initially applied. However, randomization was weighted toward the successful and away from the unsuccessful experimental or control. Unfortunately, the first patient randomized to ECLS lived, the second randomized to control and died and the third randomized to ECLS and lived. From that point forward, because of the weighting, all patients ended up randomizing to ECLS and lived. Thus, in this study there was one control who died and eleven ECLS patients that survived with a statistical difference suggesting effectiveness of ECLS.

O’Rourke et al conducted a trial of ECLS with an atypical randomization scheme utilizing a statistical design by Zelen. Randomization would place the patients in the conventional or ECLS group, but a maximum of four deaths would be allowed at which point the randomization would stop and all patients would be placed in the other group [28]. In phase I, four of ten babies in the conventional group died and nine of nine babies in the ECMO group survived [29]. Randomization was halted as planned and twenty subsequent newborns were managed with ECMO . Overall, the survival of ECMO treated infants was 97% (28 of 29) compared with 60% (6 of 10) in the conventional group which was significantly different (P < 0.05).

Finally, a study of newbornECLS in the United Kingdom used a standard randomization approach [30]. Newborns (n=185) with respiratory failure at neonatal intensive care unit centers were randomized to remain at the center or to be transferred to one of five ECMO centers. In the ECLS group, 30 of 93 infants died compared with 54 of 92 allocated conventional care (p = 0.0005). A study of similar design was performed in adult patients with severe ARDS [5]. The data suggested that mortality or severe disability at six months was lower in the ECMO group (36.7%) when compared to controls (52.9%)

Attempts have been made to perform a randomized, controlled trial of ECMO in pediatric patients. However, difficulties with the ethics around refusing ECLS in patients with severe respiratory failure and low enrollment made the study impossible to accomplish. Green et al demonstrated that among 53 diagnosis and risk matched pairs, there was a significantly lower mortality rate in the ECMO treated patients (26.4% versus 47.2%, p < .01) [31].

Determining futility when deciding whether to offer ECMO as a management option is a source of debate for the ECLS community [32][33]. In patients with severe burns, major head injury or disseminated malignancy the prognosis is in general poor. Moler et al published a retrospective study of 2,879 pediatric patients supported with ECLS of which 183 were immunocompromised. The subgroups analyzed were those patients with immune deficiency, leukemia, lymphoma, cancer, opportunistic infections, solid organ transplant and bone marrow transplant. Of these patients, there was reduced hospital survival ranging from 0 to 37% [34]. However, multiple centers are exploring the use of ECMO in this population. Often attempts are made to identify the overall prognosis of the illness with a multidisciplinary discussion including the oncology team and family to determine candidacy for ECLS.

Since futility may sometimes be difficult to ascertain at the time of intervention, some children are placed on ECLS allowing time for a discussion to occur between all the involved parties including the family, the palliative care team, and a member of the institutional ethics committee. Patients with profound neurologic impairment, multiple congenital anomalies or other conditions not compatible with meaningful life should be excluded as candidates for ECLS.

When should one stop extracorporeal life support in the patient that is not making progress?

Another ethical dilemma is around the point where ECLS is futile and should be discontinued. The initial discussion with a patient’s family regarding ECLS should include potential outcomes and complications. Having clear goals and an expected time line mitigates extensive periods of ECLS in patients who may not have meaningful outcomes. That being said, the time on ECLS which indicates that recovery is futile is rapidly changing and is a significant controversial issue. Although ELSO guidelines suggest a cutoff period of two weeks without resumption of pulmonary function in a patient that is not a transplant candidate and three days in patients that are not ventricular assist device or cardiac transplant candidates, at pediatric and adult centers patients with respiratory failure have been on ECLS for many months [35]. One child was reported to be on ECLS for 600 days and was successfully weaned. The indication of futility is also a controversy in newborns with CDH where it has been suggested that longer periods on ECLS should be undertaken before discontinuation of ECLS is considered since at four weeks, 43% of patients still on ECMO survived to discharge [36].

Clearly, there are many ethical considerations that need to be taken into account when making the decision to take a patient off ECLS. No strict guidelines are in place with regards to the duration of ECLS and it is not possible to determine what constitutes an ECLS run that is too long. Ultimately the decision as to when a patient who is not recovering with ECLS should come off support lies with the care provider and the family.

Advanced Medical Therapies

What medical options may be instituted prior to extracorporeal life support?

Ventilation strategies in patients with respiratory failure such as acute respiratory distress syndrome (ARDS) have shifted from focusing on oxygen delivery alone to lung protective ventilation (LPV) with low tidal volumes and high peak end expiratory pressures (PEEP) [37]. This shift was partially brought on by data released in the ARDSnet study indicating that lung protective ventilation was found to have better outcomes and reduced time on the ventilator [38][39].

Patients with severe ARDS pose challenges in trying to choose the optimal approach and treatment. Conventional ventilation may provide inadequate oxygenation and ventilation secondary to the decreased compliance of the pulmonary system. In such a scenario, adjunctive therapeutic options include high frequency oscillator ventilation, high frequency jet ventilation, neuromuscular blockade, prone positioning, recruitment maneuvers, inhaled prostacyclin, steroids and surfactant [40]. (see Respiratory Careand Respiratory Care in the Neonate) Extracorporeal life support (ECLS) is considered when the patient continues to require ventilatory support with escalating settings despite optimal medical management. Discussions around potential ECLS should be had with family and other members of the health care team in order to facilitate efficient decision-making and initiation of ECLS if necessary.

ECLS

What are the components in the extracorporeal life support circuit?

Outflow from patient

In both venoarterial (VA) and venovenous (VV) extracorporeal life support (ECLS), the venous cannula drains blood from the patient into the circuit. Commonly in the pediatric age group, the internal jugular vein is used for venous access. See guidelines to venovenous cannulaand Origen venovenous cannulas In older children, adolescents, and adults, the femoral vein is an alternative. Under 5 years of age the femoral vein is usually too small for placement of a cannula adequate for venous drainage, though this may be assessed by ultrasound. If the femoral vein is too small, the iliac vein is an option. Ultimately, the right atrium may be cannulated if other peripheral options are unavailable. Cannula size in pediatric patients depends on the weight of the child. (see Cannulation for ECLS)

Inflow to the patient

Inflow may be through arterial (VA) or venous (VV) access. In VA ECLS for neonates and young pediatric age group, access is most often established through the carotid artery. See guidelines to venoarterial cannula In older children and adolescents, the femoral artery is an alternative, although the complication rate of femoral artery cannulation in children is significant [41]. In adults, other options include subclavian or axillary artery cannulation and "stovepipe" access in which a graft is sewn end-to-side onto an artery with the tip of the cannula in the end of the graft, thus avoiding occlusion of the artery. In VV ECLS, reinfusion in general is through the internal jugular or the femoral vein. Double lumen cannulas are available for children of all ages. The Avalon double lumen venovenous cannula, placed through the internal jugular vein, provides access to both the inferior and superior vena caval blood drainage with reinfusion directed toward the tricuspid valve. This cannula is routinely used in adults and adolescents, but has been associated with complications resulting from malposition in newborns and younger children [42].

Pump and pressure regulators

In ECLS there are two types of pumps - roller and centrifugal pumps. Barrett, et al., conducted a retrospective study examining the differences in complication rates (e.g. hyperbilirubinemia, renal failure, hemolysis) between different pumps and demonstrated increased complications with the centrifugal pump. However, there was no statistical difference in survival to discharge between pump types [43]. When a roller pump is used, it is often servoregulated by a bladder which stops the pump whenever the bladder collapses. Bladder collapse is due to inadequate venous blood return. Typically, the bladder collapses which throws a switch that stops the pump. The bladder then fills which allows the pump to restart upon which the bladder may collapse again. The pump, therefore, repeatedly stops and starts or "cuts out". Solutions are to administer volume, raise the patient bed which increases the pressure drop from the patient to the bladder or to slow down the pump. The sensitivity of the bladder may also be decreased by placing a stent behind the bladder which decreases the tendency for the switch to be thrown.

Oxygenator / membrane

The oxygenator is the membrane portion of the circuit which facilitates the diffusion of gases (oxygen and carbon dioxide) between the supplied gas and the blood in the circuit. This membrane material consists of solid silicon rubber, a microporous hollow fiber (polypropylene) or a solid hollow fiber (polymethyl pentene).

Each membrane oxygenator will have a set rated flow. This is a measurement of how many liters /min of blood with a hemoglobin of 12 mg% can be passed through the membrane and still achieve an oxygen saturation of 95% at the outlet of the device. If flow requirements are increased, then a second oxygenator may be added to the circuit.

Sweep gas

This component of the circuit controls the elimination of CO2 and has little effect on blood oxygenation. Increasing the sweep flow increases the elimination of CO2 in the circuit. This principle is based on the fact that CO2 diffuses across the membrane much faster than O2. For the most part the sweep gas is 100% oxygen or, when hypocarbia is present, Carbogen (5% CO2 and 95% O2).

Heat exchanger

A water bath is usually found between the oxygenator and the inflow to the patient. This serves to control the temperature of the blood which is reinfused into the patient. The temperature is usually maintained around 38˚F. which allows for for slight cooling before reinfusion of blood into the patient. Interestingly, body temperature is almost entirely controlled by the ECLS circuit such that other forms of warming become inconsequential.

Monitors

Monitors found in the ECLS circuit are the mixed venous oxygen saturation (SvO2), hematocrit, circuit flow, pre- and post-oxygenator pressures, anticoagulation assessment, heat exchanger temperature and the pump rotations per minute. Having all these datapoints available makes it possible to assess whether support demands are waxing or waning.

How are the circuit parameters managed?

When a circuit is primed for initial use the composition of the fluid within the circuit is brought as close as possible to blood composition. For this, electrolytes such as potassium and calcium need to be corrected. Albumin usually is added to ensure that blood proteins do not adhere to the tubing.

For neonates and children blood should be used to prime the circuit in order to avoid hemodilution. The hematocrit in the circuit is usually maintained at approximately 40%. If blood is being added, one needs to augment calcium in order to replete the calcium bound by the citrate in the blood.

Once the patient is placed on the ECLS circuit, the level of support is titrated to reach a state where the patient is fully supported based on weight (60 to 120 mL/kg/min) (see General Guidelines to VA Cannulation). The maximum flow obtained is a measure of the patient blood volume and the cannula M number. (see Basic Science) Once the maximum flow is reached it is titrated down to the least amount of flow that is necessary to keep the patient fully supported. Adequate support is obtained when the patient on VA ECLS has a mean arterial pressure within normal range for their age and weight, an SaO2 greater than 85%, and an SvO2 greater than 65%. Since the SvO2 is not accurate during VV ECLS because of recirculation, the SaO2 should be maintained greater than 80%. The flow and sweep gas are adjusted to keep the these target numbers within range.

Typical ECMO parameters

ECMO parameters have been reviewed and changes are needed

Yes/No

keep MAP between

(age dependent)

keep Hct between

30 to 40%

keep platelets greater than

>100,000/mm3

keep ACT between

210 to 230 sec

190 to 210 sec

170 to 190 sec

keep pH between or

keep PaCO2 between

7.25-7.45

45-65 mm Hg

keep SpO2 greater than

>80%

keep SvO2 greater than

>65%

keep PaO2 greater than

>40 mm Hg

keep temperature between

36-38 oC

keep fibrinogen greater than

>100 mg/dL

notify clinician for urinary output

< 2cc/kg/hr

maintain a CVP of

maintain an LA of

special instructions

MAP - mean arterial pressure, HCT - hematocrit, ACT - activated clotting time, SpO2 - pulse oximetry, CVP - central venous pressure, LA - left atrial pressure

Blood flow

Flow is titrated to maintain cardiopulmonary variables within the target range. The most common cause of a decrease in flow is inadequate intravascular volume and may be remedied with volume administration. Other causes are reviewed in Medical Decision Making.

Oxygenation and carbon dioxide removal

Adequate oxygenation is ultimately determined by the DO2 which is a combination of the SaO2, hemoglobin, and combined blood flow from the ECLS circuit (with VA bypass) and the native cardiac output. The blood draining from the ECLS circuit often has a PaO2well above physiologic range (200 to 300 mm Hg). Carbon dioxide removal is a function of the sweep gas. As the sweep is increased, carbon dioxide is more efficiently removed.

Anticoagulation

Anticoagulation in ECLS is achieved using heparin. The optimal or therapeutic level of heparin is titrated according to the activated clotting time (ACT) goals. The common target range is 210 to 230 seconds. The ACT goals may be lowered to the 180-200 second range when a procedure is performed on a patient who is on ECLS. ACT levels are checked at the bedside which allows rapid titration of heparin to reach goal levels of anticoagulation. Some centers use anti-Xa assessment to titrate heparin with a goal of 0.4 to 0.8 IU/mL[44]. As heparin activates antithrombin III (ATIII) to inactivate thrombin, ATIII deficiency may require increased doses of heparin. The diagnosis may be confirmed by checking ATIII levels with administration of recombinant ATIII, although the effect of the relatively expensive ATIII on bleeding and tranfusion requirements in patients on ECMO has been mixed [45][46].

Thrombocytopenia (less than 150,000) may be seen in patients on ECLS as a part of their pathological process, consumption in the circuit or removal of platelet aggregates by the liver and spleen. HITT (Heparin Induced Thrombotic Thrombocytopenia) should be suspected when the platelet count is persistently less than 20,000 and not responsive to platelet transfusions. This diagnosis may be confirmed by assessing the PGF4 antibody and serotonin release assay. Once confirmed, anticoagulation may be achieved using a direct thrombin inhibitor such as argatroban.

Thromboelastogramsmay be used to assess anticoagulation in ECLS patients.

Circuit monitors

Pump pressures are mostly monitored to prevent circuit rupture and to prevent negative prepump pressures which could induce cavitation and associated hemolysis and air bubble formation. Once outlet pressures are greater than 300 mm Hg, the cause should be determined with consideration for high systemic arterial pressure, increased cannula resistance and clot formation in the membrane oxygenator or conduit tubing. When circuit pressures are > 500 mmHg, rupture should be considered imminent. The circuit is frequently evaluated to identify any fibrin or clot formation. If clot formation and evolution is evident, that portion of the circuit or the entire circuit may need to be replaced. Inlet pressures to the gas exchange device may also be monitored to evaluate the pressure drop pre- and post-oxygenator. A high pressure drop would be indicative of clot formation in the artificial lung. Finally, pre-pump pressures are monitored when a centrifugal pump is being used. High negative pressures are indicative of inadequate blood drainage for the current pump flow rate, such as due to inadequate intravascular volume or cannula size; suboptimal cannula positioning; or occlusion of the drainage tubing. Typically, pressures are maintained above -100 mm Hg.

Air in the circuit can occur on both the drainage and reinfusion side of the circuit. Small amounts of air in the drainage limb is not dangerous since it will get caught in the oxygenator and dissipate. Air bubbles in the inflow circuit pose a threat for air embolism. If such a situation arises the circuit must be disconnected from the patient by clamping the drainage and reinfusion limbs, the patient must be placed on rescue ventilator settings and the circuit debubbled or replaced. Causes for air bubbles in the circuit include aspiration of air into the ECMO venous drainage lines or air entrained through an open stopcock. The most common source of small air bubbles in the ECLS circuit is from air associated with intravenous fluids infusing into the patient.

Electrical power failure is a rare occurrence. However, should such an event occur, there is a pump hand crank specifically for this purpose.

Inadvertent decannulation may occur if the cannulas are inadequately secured to the patient and result in air embolism and hemodynamic compromise. Clamping the cannulas at their exit sites, controlling bleeding with direct pressure and re-establishing cannulation in the appropriate vessels are the steps to follow in such a situation [3].

How is pulmonary care managed on extracorporeal life support?

ECLS is a technique that provides time for the pulmonary or cardiac pathology to resolve. While on ECLS, the patient is placed on minimal ventilator settings allow lung healing and to avoid further lung injury. Often the settings include a low respiratory rate, a long inspiratory time, a low plateau inspiratory pressure (PIP) and room air oxygen levels. For example, in a newborn the rest settings may include a rate of 10 breaths/minute, a PIP of 20 cm H2O, a PEEP of 5 cm H2O, and an FiO2 = 0.21. The ventilator may be discontinued entirely in patients with a lung air leak in order to allow the lung to heal.

When the patient is ready to trial off ECLS, lung recruitment is achieved by increasing the ventilator settings to a physiological respiratory rate with peak airway pressures of 25 to 30 cm H2O depending on the age, weight and state of lung healing. Tidal volumes are maintained < 6 mL/kg in order to avoid barotrauma and adjusted to reflect adequate oxygenation and ventilation as assessed by the patient’s blood gases [3].

How is nutrition provided on extracorporeal life support?

Neonates on ECLS demonstrate high rates of protein catabolism and lose up to 15% of their lean body mass during a seven day ECLS course. Requirements for fluid restriction are the usual limiting factors in nutrition delivery. If patients are not already on it, nutritional support should be initiated at the time of ECLS. Energy requirements are equivalent to healthy subjects (100 to 120 kcal/kg/d in a newborn). Enteral feedings should be initiated when the patient on ECMO has clinically stabilized (i.e. off vasoactive medications) [47][48].

What volume issues are seen in patients on extracorporeal life support?

Fluid overload is a common issue in neonates supported with ECLS. This may be due to the resuscitation they undergo prior to and during ECLS. During the course on ECLS, patients may require blood products in order to maintain appropriate coagulation function and hematocrit levels, e.g., a hematocrit greater than or equal to 40%, platelets greater than 100,000/mm3 and fibrinogen levels greater than 100 mg/dL. After being placed on ECLS and having been resuscitated it is not unusual for the patient’s body weight to be twenty to 30% above the dry weight. Following an initial 24-48 hour period and once the patient is stabilized, diuresis can be initiated in order to achieve a target weight slightly above the dry weight. Attaining a dry weight is thought to foster successful trials off of ECLS.

What is the role of ambulatory extracorporeal life support?

Mobilization of the patient on ECLS may be done with care taken not to dislodge the cannulas and other forms of vascular access. In fact, the double lumen Avalon cannula inserted via the right internal jugular vein has eliminated the need for a femoral cannula, thus enhancing patient mobility. Recent studies have demonstrated improved outcomes in pre-lung transplant patients who ambulate and work with physical therapy in order to avoid developing disability while on ECLS[49]. The benefit of early ambulation has not been studied in the pediatric population. In a study published by Abrams, et al., ambulation among pre- and post-lung transplant patients receiving ECLS was demonstrated to be both safe and feasible [50].

Should prophylactic antibiotics be used in patients on extracorporeal life support?

Patients requiring ECLS form a subset of patients that are critically ill and with the cannulas and extracorporeal circuit blood flow it makes sense that prophylactic antibiotics would be of value [22][28]. However, in fact no literature exists supporting the need for prophylactic antibiotics in patients on ECLS. In contrast, there are a number of studies that negate the need for prophylactic antibiotics and emphasize the complications that arise from prolonged prophylactic antibiotic therapy. On a regular basis the cannula sites are cleansed with antiseptic solution and a dry sterile dressing or antibiotic cream or ointment is applied locally [3].

Medical Decision Making

When is venoarterial versus venovenous extracorporeal life support used?

Venoarterial (VA) bypass is indicated if cardiac support is required or in any patient where access for venovenous (VV) support cannot be obtained. For VA access, the preferred site for venous drainage is the right atrium via the right internal jugular vein with reinfusion into the aortic arch via the right common carotid artery.

Venovenous (VV) extracorporeal life support (ECLS) is used in patients requiring only respiratory support. Therefore, the cardiac function has to be adequate. This may be difficult to determine when the patient is severely hypoxemic since high pressure ventilation may depress cardiac function and increase the need for inotropic support. After ECLS is initiated, airway pressures are decreased, SaO2 increased, cardiac output is enhanced and inotropic support may be successfully weaned. VV bypass has the advantage of avoiding arterial cannulation which eliminates the potential for arterial embolization and ischemia. Arterial ligation is unnecessary, pulmonary blood flow is preserved and oxygenation of the pulmonary circulation is augmented. In addition, there are no hemodynamic effects such as an increase in left ventricular afterload. Finally, during VA bypass the blood ejected by the left ventricle perfuses the coronary arteries/myocardium and is relatively hypoxic. During VV support, the myocardium is instead perfused by blood that is relatively well oxygenated. For VV access, the preferred site of access is the right internal jugular vein for a double lumen cannula and the right internal jugular vein and femoral vein for multiple site cannulation.

Comparison of venoarterial and venovenous bypass

Venoarterial

Venovenous

cannulation site

V: IJ, FV, RA

A: RCCA, Ax, Fem, Ao

IJ, FV, RA

PaO2

60 to 150 mm Hg

45 to 80 mm Hg

indicator of O2 adequacy

SvO2, PvO2

PaO2, SvO2, cerebral SvO2

cardiac effects

↓preload and pulse pressure

↑afterload

negligible

O2 delivery capacity

high

moderate

circulatory support

partial to complete

no direct effect

Pulmonary circulation

- R→L shunt

↓SaO2 in aorta

↑SaO2 in aorta

- L→R shunt

may cause pulmonary congestion and systemic hypoperfusion

may cause pulmonary congestion and systemic hypoperfusion

PaO2 - pulmonary artery oxygen, SvO2 - mixed venous oxygen saturation, IJ - internal jugular vein, FV - femoral vein, RA - right atrium, RCCA - right common carotid Artery, Ax - axillary artery, Fem - femoral artery, Ao - aorta

How do you evaluate the patient on extracorporeal life support?

Patients on extracorporeal life support (ECLS) are evaluated daily. Weight is assessed in order to determine whether fluid overload exists. Diuresis is initiated with a goal body weight just above that of dry weight in order to optimize pulmonary and cardiac function. Daily chest radiographs are obtained to assess for aeration. Once the lung starts demonstrating early aeration, the conventional ventilator may be placed on recruitment settings. (see Medical Treatment)

The amount of ECLS a patient requires can be assessed by the required level of ECLS flow and sweep gas. Once these start to derease and the patient maintains normal hemodynamics and gas exchange, it is an indication that the cardiopulmonary system is regaining function. With VV ECLS, the flow and sweep gas may be decreased with eventual discontinuation of sweep flow and capping of the gas phase of the oxygenator so that blood continues to perfuse the oxygenator, but there is no contribution to gas exchange. Assessment of serial blood gases and SvO2 levels during this trial allows evaluation of the patient’s lung function.

With VA ECLS, ECLS flow may be decreased as native gas exchange improves. Eventually, a "trial off" is performed as the arterial and venous tubing between the circuit and the patient is clamped. Blood in the ECLS circuit is allowed to continue flowing through a "bridge" between the arterial and venous aspects of the circuit in order to maintain circuit patency and to avoid clot formation. Serial blood gases are followed to assess the oxygenation and ventilation while off ECLS and on acceptable ventilator settings. Echocardiography may be useful to assess cardiac function and right-sided heart pressures during the trial.

If the trial is successful, the cannulas may be left in place for 24 hours as the ECLS circuit is discontinued, especially if there is uncertainty as to whether the patient may or may not need to be placed on ECLS again. That being said, the cannulas should be removed at the earliest possible time [3]. Infusion of heparin through the cannulas prevents clot formation.

How does one trouble shoot when the flow is inadequate?

If pump flow is insufficient during ECLS, it is most often due to inadequate intravascular volume: cautious volume administration may address the issue. Other issues include cannula positioning, kinking or size; tension pneumo- or hemothorax which may decrease flow by impeding venous return;pericardial tamponade which will increase intrapericardial pressure and decrease venous return; patient Valsalva; reduced patient height when a servoregulated bladder is used (drainage pressure is dependent on height between the patient and the bladder); or pump malfunction [51]. When there is insufficient flow, check the ECLS circuit for kinks and raise the bed if using a bladder. If a centrifugal pump is being used without a bladder, high negative drainage pressures should be noted if the problem is with volume; cannula positioning, kinking or size; or in the drain tubing segment. A chest radiograph and an echocardiogram should be performed if a simple solution is not apparent. If flow and/or oxygenation is inadequate during VV ECLS, conversion to VA ECLS or an addition of another drainage cannula may be necessary.

How does one trouble shoot when the patient is hypoxic?

If the patient suffers refractory hypoxemia on ECLS that is not remedied by increasing oxygen or flow, consider oxygenator failure or a disconnected sweep O2. Check that the blood leaving the oxygenator is bright red and that blood gases assessed at the outlet of the oxygenator demonstrate a PO2 greater than 200 to 300 mm Hg. The sweep flow outlet of the oxygenator should be examined for evidence of blood which suggests a membrane leak [51][52].

The blood from the circuit should have a saturation of 100%. The SaO2 may be lower than 100% as a consequence of poorly saturated blood leaving the patient’s diseased lungs mixing with the circuit blood. In fact, as intravascular volume increases, more blood passes through the native circulation relative to the ECLS circuit. Since the blood flowing through the native circulation is poorly saturated, the arterial mix of the ECLS and native cardiac output will result in a lower SaO2 as blood volume increases as long as ECLS flow remains unchanged. Interestingly, despite the observed decrease in SaO2, the total oxygen delivery from the ECLS circuit plus the native cardiac output remains constant. The optimal management of this arterial desaturation is not just to increase flow; rather, it is to diurese the patient.

Surgical Decision Making

see Cannulation for ECLS

Steps of the Procedure

see Cannulation for ECLS Steps of the Procedure

How is surgery performed while on extracorporeal life support?

When surgical procedures, such as thoracotomy, chest tube placement, paracentesis, vascular access, suprapubic bladder aspiration or diaphragmatic hernia repair are performed on extracorporeal life support (ECLS), the following protocol for patient management is recommended in an effort to minimize bleeding complications. Preoperatively, the platelet count should be greater than 100,000/mm3 and the ACT 180 to 200 seconds. Packed red blood cells should be available for immediate infusion. All tissues, including the skin, are incised with electrocautery. Dissection is performed slowly with meticulous hemostasis and ligation of all identifiable vessels. Topical hemostatic agents such as fibrin glue, Gelfoam® and thrombin are recommended. Complete hemostasis needs to be confirmed prior to closure [53].

In many institutions an aminocaproic acid infusion is used routinely in preparation for operations such as thoracotomy or CDH repair while on ECLS. A bolus of 100 mcg/kg is administered followed by an infusion of 30 mg/kg/hr. The infusion is started six hours prior to the anticipated operation and continued up to 24 hours post surgery [54].

The optimal approach to repair of a congenital diaphragmatic hernia (CDH) in a newborn on ECLS has been examined extensively over recent decades. A review from the American Pediatric Surgical Association outcomes task force suggested that early repair, before anasarca develops on ECLS, may have improved survival and shorter ECLS duration (Grade D recommendation) [55]. In contrast, Partridge, et al., reported decreased outcomes in CDH patients undergoing surgical repair while on ECLS compared with repair following decannulation [56].

Postoperative Care

How should patients be transported on extracorporeal life support?

Interhospital transport on extracorporeal life support (ECLS) is defined as either local, regional or long distance. Local transport is performed by ground and is defined as a distance of less than 150 miles. Regional transport encompasses distances of 150 to 1,000 miles and requires either rotary or fixed wing aircraft. Long distance transport over more than 1,000 miles generally requires jet aircraft capability.

The majority of patients referred to an ECLS center can be transported before initiation of ECLS. However, a number of patients miss the window of stability or rapidly deteriorate precluding safe transport. Additionally, some medical centers are located in remote geographic areas without a regional ECLS center making prolonged transport risky even when an early referral is made. As a result, several ELSO centers have developed capabilities for mobile ECLS transport which has become more feasible as simpler, less cumbersome equipment has been developed [57].

Challenges faced with running a mobile ECLS program include expense; delay from time of initial referral until ECLS team arrival; logistical and medicolegal issues with cannulation away from the home institution and substantial resource utilization. Therefore, mobile ECLS is not a substitute for early referral and transport. With regard to some of these issues, our institutional ICU is considered to extend to the referring institution even when in another state, thus avoiding issues with licensing, privileging, and disagreements over management. The patient is, therefore, on our "service" despite being in a referring institution. The survival to discharge with mobile ECLS has been reported to be between 33 and 100%, depending on the series. A recent review reported on 102 critically ill adult patients managed with mobile ECLS prior to transport to the tertiary referral center. Of those, 93% had venovenous ECLS and seven percent had venoarterialECLS. There were no mortalities or major complications associated with the transfer [58].

Complications

What circuit component complications occur?

As the extracorporeal life support (ECLS) circuitry has become more sophisticated, many of the complications associated with ECLS have been reduced. However, equipment malfunctions still occur. Oxygenator failure, tubing rupture, pump and heat exchanger malfunction, and thrombosis and hemolysis are still being reported to the ELSO registry[59]. By early 2015, ELSO noted up to 1600 neonatal and 800 pediatric oxygenator failures. In pediatric cardiac ECLS, nearly 1000 failures were observed [3]. Other complications are less common, but all of them effect patient survival negatively. Using a daily check list may allow identification of equipment issues before circuitry components need to be changed emergently. Predetermined emergency ventilator settings and cardiovascular medications should be immediately available in case of equipment failure.

How is hemolysis assessed?

Hemolysis results from direct erythrocyte trauma in the circuit. High roller pump occlusion pressures and the use of centrifugal pumps contribute to higher rates of hemolysis. Daily assessment of free plasma hemoglobin may allow early identification of hemolysis [60][61]. Development of hyperbilirubinemia or acute renal dysfunction in the setting of rising free serum hemoglobin indicates ongoing hemolysis [62]. A consumptive coagulopathy sometimes occurs due to thrombi within the circuit and may be associated with thrombocytopenia and high free serum hemoglobin levels. Under those circumstances, a circuit change may be necessary.

How does one manage air in the circuit?

Micro air emboli occur intermittently on ECLS without much consequence. Large air emboli, however, may lead to interruption of flow and potential devastating consequences if they enter the arterial circulation. Air can be introduced when the circuit is accessed for infusions and medications, especially on the venous drainage side where circuit pressures are negative. Another common source of small air bubbles in the ECLS circuit is from air introduced elsewhere into the patient’s venous blood system via intravenous fluids. Infusion sytems with built in filters may reduce the introduction of such air. The majority of air emboli are captured by and dissipate from the membrane oxygenator. As a result, they are prevented from entering the arterial circulation. It is for this reason that infusions into and access to the post-oxygenator, reinfusion segment of the circuit is discouraged, if not against policy, in many institutions. When air is injected into the circuit, more makes it through the oxygenator with a centrifugal pump when compared to a roller pump, perhaps related to the ability for air to collect in the pump head [63].

If air is noted on the arterial side, attempts must be made to aspirate the air before it enters the patient’s circulation. If this cannot be done, emergency ventilator settings should be implemented and the circuit disconnected from the patient by clamping the drainage and reinfusion limbs. The circuit may then be debubbled or replaced. At times, the involved segment of tubing may specifically be clamped and debubbled.

Finally, preoxygenator pressure monitoring prevents high negative pressures on the venous side of the circuit. High negative pressures tend to induce cavitation in the venous drainage portion of the circuit and air bubble formation [6].

What cannula complications are observed and how are they managed?

Migration or kinking of the cannula can result in decreased venous drainage with concomitant loss of support or obstruction of outflow which may result in high circuit pressure and potential circuit rupture. In addition to these complications, during VV ECLS cannula malposition may result in recirculation with an associated decrease in support. Complications of VV ECMO are observed more frequently in patients cannulated with a non-wire wound double lumen cannula. Such cannulae are prone to kinking with positional changes. Currently available double lumen cannulae should be oriented with the arterial side anterior in order to direct the return of oxygenated blood toward the tricuspid valve. Even when a cannula is initially placed in proper position, it can migrate with changes in patient position, volume status, or diaphragm elevation. When cannula malposition is suspected, it can easily be diagnosed with a chest radiograph or an echocardiogram. Echocardiography can also be used to reposition the cannula if needed [64].

Venous or arterial blood vessel or atrial perforation is a devastating cannula complication which most often occurs during cannulation. Failure to obtain flow from a cannula during initiation of bypass should raise suspicion for malposition, including extravascular placement. The presence of a cardiac tamponade with blood in the pericardium should raise the spectre of atrial or ventricular perforation which must be ruled out. In newborns and young children, our experience, and that of others, is that the Avalon cannula has been associated with multiple complications during cannulation, including that of vascular perforation [42]. As a result, we now have a policy that all percutaneous cannulation procedures must be performed with fluoroscopic guidance, preferably in the operating room. In addition, the Avalon cannula, which is inserted via the right internal jugular vein, requires that the tip be placed into the inferior vena cava (IVC). The reinfusion port is only a short distance from the tip; thus, there is only a short segment of the cannula which is in the IVC. There have been a number of cases in children where the tip of the cannula migrated into the hepatic veins, the right atrium, or the right ventricle with potential loss of flow and/or perforation. As a result, we no longer use the Avalon cannula in patients less than two years of age.

How are bleeding and thrombosis managed?

Bleeding, thrombosis and disseminated intravascular coagulation are by far the most common complications seen with ECLS. The interaction of blood with the circuit components is immediate upon initiation of ECLS. This activates thrombogenic pathways leading to platelet activation, aggregation and consumption despite administration of heparin [62]. At the same time, the fibrinolytic pathway is activated leading to clot lysis [62]. As a result of heparin administration, thrombocytopenia, and clot lysis, bleeding complications are frequent in patients on ECLS. Cannula site, gastrointestinal and surgical bleeding occur in up to eight percent of neonates and 18% of children treated for respiratory failure. In cardiac patients, surgical site bleeding is reported in up to 30% of infants and children [3].

Frequent laboratory monitoring and repletion of platelets and clotting factors minimizes the risk of bleeding. The ideal monitoring of anticoagulation is still debatable, but many institutions follow activated clotting times (ACTs), thromboelastography or both. Minor bleeding may be addressed with topical agents and the repletion of platelets and coagulation factors. Excessive bleeding may necessitate adjustment in ACTs or even cessation of heparin; administration of aminocaproic acid and possible surgical control. Reduction in ACTs to the 170-190 second range or cessation of heparin is frequently associated with thrombus formation in the circuit. As a result, it is recommended that a primed backup circuit be available when ACTs are lowered beyond the 170-190 second range. The development of less thrombogenic circuits which do not require anticoagulation are ongoing, but human data have not been produced to date [65].

What neurologicsequelae are observed in patients treated with extracorporeal life support?

Patients treated with ECLS remain at risk for neurologic complications. Often, these precede the initiation of ECLS due to the severity of hypoxia and cerebral hypoperfusion associated with the critical illness that necessitated the escalation of care. Neonatal patients experience the highest rate of complications which range from minor developmental delay to seizures, hypoxic-ischemic encephalopathy, stroke and intracranial hemorrhage (ICH). The rates of each individual complication are approximately four percent with 11% of patients on ECLS experiencing at least one of these complications [66]. While ELSO Registry studies have suggested that carotid artery cannulation is associated with increased rates of neurologic injury in patients < 18 years of age, the stroke rate in those on ECLS is only approximately 1.4% higher in the group with carotid artery ligation when compared to those with non-carotid artery cannulation [7][67][68]. It has been suggested, therefore, that carotid artery cannulation should be the primary access in young children and in those with marked physiologic instability when VA ECLS is required. It should be noted that the stroke rate with carotid artery cannulation is not altered with age over the first 18 years of life.[7]

A recent study of neonates on ECLS demonstrated an increased risk for ICH in infants with persistent pulmonary hypertension who also had thrombocytopenia and low fibrinogen levels. In addition, neonatal hypertension was associated with an increase in the rate of ICH [69]. As a result, the authors suggest that maintaining fibrinogen and platelet counts within normal ranges is crucial to prevent ICH in newborn patients on ECMO.

What renal sequelae are observed in patients treated with extracorporeal life support?

Acute kidney injury(AKI) and renal failure complicate up to 15% of ECLS runs and serve as an independent predictor of mortality with a rate of 27% [70]. AKI results from hypoperfusion associated with the patient’s primary disease and complications such as hemolysis while on ECLS. Younger patients and those who experience cardiac arrest prior to cannulation have a higher rate of AKI[71].

Diaphragmatic hernia(CDH) infants on ECLS experience AKI and renal failure more frequently than other neonates on ECLS. A 2011 review by Gadepalli, et al., demonstrated a 71% rate of AKI in CDH infants requiring ECLS over a ten year period with 22% meeting criteria for injury and 49% falling into a failure category based on RIFLE criteria. Survival was decreased to 27.3% in CDH patients with renal failure on ECLS which compares to a survival of 80% in such newborns without renal failure[72].

Recent trends have advocated earlier initiation of continuous renal replacement therapy (CRRT) for pediatric patients on ECLS, suggesting better survival if therapy is initiated prior to greater than 10% fluid overload [73]. While the feasibility of CRRT and ECLS has been documented, the data on the effect of CRRT on mortality in this group of patients is currently lacking [74].

Outcomes

How have mortality rates for patients on extracorporeal life support changed?

In the newborn population, the criteria for extracorporeal life support (ECLS) has expanded to include premature neonates, congenital diaphragmatic hernia (CDH) patients with severe pulmonary hypoplasia, those with IVH, those with septic shock, patients with severe forms of congenital heart disease, and, in general, more complicated cases. Simultaneously, as the ability to support neonates with respiratory failure has advanced, "straightforward" newborn cases that required ECLS in the past, e.g., those with meconium aspiration syndrome and PPHN, are now reasonably supported by conventional measures, including iNO. As such, more complex patients are now being managed with ECLS[3][7] which adversely affects outcomes, including survival. In fact, the most recent statistics show a downward trend from 80% survival to discharge in the early 1990s to 66% over the last few years.

Neonates with meconium aspiration syndrome (MAS) have the best survival by far (nearing 95%), followed by respiratory distress syndrome and PPHN (84 and 77%, respectively). CDH babies requiring ECLS have the worst survival among neonates which has remained at approximately 51% for the past five years.Neonatal Respiratory Runs by Diagnosis However, successful outcomes should focus on not just survival, but also quality of life. While neonates have the highest rate of neurologic complications, their long term outcome is quite good and the rate of seizures and developmental delay is comparable to children with respiratory failure treated with conventional measures. As earlier disabilities resolve, they are found to have more subtle developmental issues such as learning disabilities. In one series, 50% of newborns managed with ECLS had an entirely normal neurologic outcome at school entry. The remaining patients had either epilepsy, developmental delay, or cerebral palsy (12.5%). Lower gestational age and birth weight are associated with an abnormal outcome as is the diagnosis of septic shock [75]. The development of seizures appears to carry a worse prognosis with lower IQ at school age and a trend toward higher rates of cerebral palsy [76][77]. Early referral to therapy programs, including screening for sensorineural hearing loss, may improve overall development and ultimate outcomes.

The outcomes of pediatric ECLS vary by age and primary disease.Pediatric Respiratory Runs by DiagnosisELSO Data on Cardiac ECLS By Diagnoses in Patients 0-30 Days of AgeELSO Data on Cardiac ECLS By Diagnoses in Patients 30 Days to < 16 Years of Age Survival in pediatric ECLS has been stable over the last 5 years for both respiratory and cardiac diagnoses, in the range of 62 and 57%, respectively [3].

What is the outcome for extracorporeal cardiopulmonary resuscitation?

Extracorporeal cardiopulmonary resuscitation (ECPR) is increasingly applied to both adult and pediatric patients during cardiac arrest. To date, more than 1100 neonates and 2300 pediatric patients have received ECPR. Of those, 64% of neonates and 55% of children survived ECLS and 40% of both groups survived to discharge [3]. In-hospital cardiac arrest (IHCA) has the best neurologic outomes and survival to discharge for all patients who receive ECPR [15]. The return of spontaneous circulation (ROSC) rate was 2.24 times better in CPR of IHCA patients than in CPR of out-of-hospital cardiac arrest (OHCA) patients (p=0.0012) [78]. A recent retrospective single institution study of pediatric ECPR recipients reported favorable short term neurologic outcomes in 80-90% of patients [79]. However, robust long term data on neurologic outcomes are lacking.

Multiple centers in the United States and other countries have developed programs for ECPR in patients with OHCA.[80] Favorable neurological outcomes were observed in 11.2% of the ECPR group and 2.6% of the conventional resuscitation group at 6 months (P=0.001). Another study suggested that survival with OHCA was inversely proportional to age and time of CPR.[78]

Research and Future Directions

While extracorporeal life support (ECLS) has provided life saving therapy to tens of thousands of newborns, premature infants are often not ECLS candidates due to their size and risk of bleeding. The artificial placenta [81] concept allows provision of gas exchange via an artificial lung while maintaining a physiologic fetal environment for the extremely low gestation premature newborn. The umbilical vessels or internal jugular vein may be used with or without a pump. PaO2 is maintained at in utero levels (~30 mmHg) as fetal circulation is maintained. While the need for anticoagulation remains a concern, other research efforts are exploring the use of surfaces coated with nitric oxide donors to prevent thrombus formation in the circuit for the artificial placenta, as well as for ECLS in general [82].

For those patients that remain on ECLS for prolonged periods, work is being performed to develop wearable or implantable artificial lungs.[83] The hope is that these oxygenators will be reliable for long periods and will serve as a bridge to transplantation or even as a long term lung replacement "destination" device.

An interesting area of work is the application of ECLS to augment successful organ harvest in patients providing donation by cardiac death (DCD) as opposed to brain death.[84] In this scenario, support is withdrawn in patients with a poor prognosis who do not meet brain death criteria and, after electrical cardiac function has ceased for a defined period, the organs are harvested. Initation of ECLS at that time point allows for augmented recovery of donor organs.[85] In addition, other areas of research have centered on warm extracorporeal perfusion of lungs, hearts, and limbs for transplantation with the intent of preventing the ischemic injury and resulting non-function which results from cold storage.

One of the substantial advances that have been made in ECLS over the past decade has been the development of devices which have simplified the circuit and procedure. For example, older centrifugal pumps were associated with hemolysis and hyperbilirubinemia after a few days of ECLS because of the friction and heat associated with the pump heads spinning on ball bearings. The newer centrifugal pump heads are levitated on magnets with minimal friction and heat generation and, as a result, can be used safely for prolonged ECLS. Thus, the safer and simpler centrifugal pumps, which will not as easily allow circuit overpressurization or cavitatation, are now used for ECLS. Likewise, earlier hollow fiber lungs leaked plasma after a few days of ECLS. The current polymethylpentane coated fibers have a low tendency to do so. Thus, low resistance hollow fiber lungs may now be used for ECLS. Finally, double lumen cannulae allow easy venous access for support. All told, the circuit is much safer and simpler than in the past and requires less oversight: some have even added pump flow servoregulation based on PaO2 and PaCO2 so that the ECLS circuit, in essence, runs itself.

Other therapies are focusing on use of stem cells for organ development that could ultimately be used in autologous lung transplant or tissue regeneration for infants already affected by bronchopulmonary dysplasia (BPD). A chronic effect of prematurity and respiratory distress syndrome, BPD affects a remarkable number of premature infants [86]. There are no effective therapies for BPD. Ex vivo lung bioengineering with decellularized whole lung scaffolds offers an innovative solution [86]. The process of decellularizing an organ removes the cellular debris and theoretically renders the scaffold immunologically inert. Reseeding a decellularized scaffold with autologous stem cells may enable regeneration of lung tissue that can eventually be utilized for transplantation. An optimally bioengineered lung tissue would mimic the patient’s own cell type (i.e be autologous), easily expand in culture and have the ability to differentiate into the different phenotypes of distal airway cells. Investigators have differentiated pluripotent stem cells [87][88][89][90] and amniotic fluid stem cells [91] into lung precursors that can recellularize a 3D lung tissue scaffold.

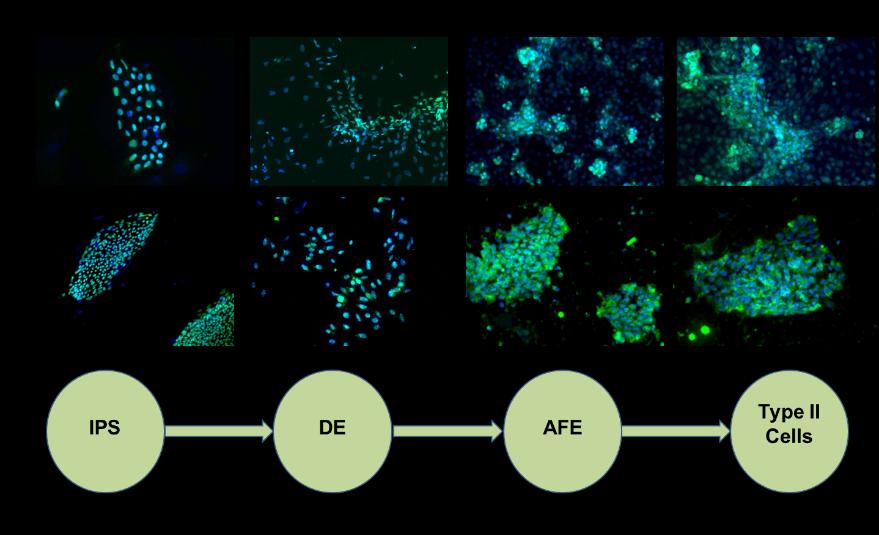

differentiation of lung stem cells

Differentiation schema to develop distal airway cells from pluripotent stem cells.

In addition, the ability to create three dimensional biomimetic matrices by decellularizing a lung can enable models for drug testing or possibly enable recellularization with eventual autologous lung transplant.

creation of three dimensional lung

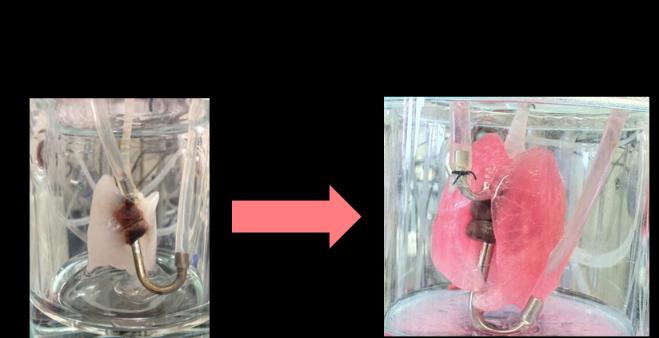

Decellularized lung reseeded with stem cells to create a three dimensional lung.

Perspectives and Commentary

To submit comments about this topic please contact the editors at NaT@eapsa.org.

Additional Resources

Extracorporeal Life Support Organization

High frequency oscillator ventilation (HFOV)

The oscillator is an effective method of ventilation when it comes to oxygenating a patient. This modality works by delivering very low tidal volumes (1 to 2 mL/kg) at a very high rate (3 to 15 breaths per second). This maintains airway pressures within a constant range allowing more efficient oxygenation. The parameters on the oscillator that can be adjusted are the amplitude, hertz and MAP. Oscillator tidal volumes are less than that of the physiological dead space, thereby minimizing ventilator induced volutrauma. The decreased, but sustained, MAP of oscillatory ventilation reduces barotrauma by avoiding high peak inspiratory pressures [92].

The OSCILLATE trial showed that the use of oscillators early on in the clinical course of ARDS did not reduce, and may increase, in-hospital mortality in the adult population [93]. However, the oscillator has been used successfully in managing patients with ARDS and other pulmonary conditions both in the neonatal and pediatric age groups with favorable outcomes. Many studies have shown decreased surfactant use, days on the ventilator, need for supplemental oxygen and incidence of death, bronchopulmonary dysplasia and neurological disabilities with use of the oscillator when compared to the conventional ventilator [92][93][94].

High frequency jet ventilation (HFJV)

HFJV is commonly used in patients when there is difficulty with gas exchange or in the setting of a bronchopulmonary fistula or tracheoesophageal fistula. This mode of ventilation works on the principle of very small tidal volumes delivered with high frequency. HFJV does require the conventional ventilator to provide adequate PEEP. In ARDS, as the essential problem lies with difficult oxygenation, there has been a mixed response to the use of HFJV [23][95]. Smith, et al., showed 69% survival in patients placed on HFJV after being on the conventional ventilator for an average of four to ten days. They found a benefit in utilizing HFJV in patients with evidence of barotrauma from the conventional ventilator (e.g., pulmonary interstitial emphysema, pneumothorax, pneumomediastinum, pneumopericardium, pneumoperitoneum) which supports the use of HFJV in the presence of airway trauma secondary to high peak inspiratory pressures [23].

Inhaled pulmonary vasodilators

see Pulmonary Hypertension Medical Treatment

Surfactant

Surfactant is most commonly used in the premature neonate. Studies have also suggested a decrease in need for ECLS in full term neonates in whom surfactant was administered.[96] Definitive data does not exist to support the use of intratracheally delivered surfactant in both the pediatric and adult population. Commonly seen side effects are hypotension, bradycardia and hypoxemia/desaturation. In a retrospective study, Shein, et al., demonstrated improved lung compliance in the first twelve hours following surfactant adminstration in pediatric patients on ECMO for non-cardiac disease, although there was no statistically significant difference in days on the ventilator or overall outcomes. The study did show that there was an increase in the number of days on the ventilator after surfactant administration [97][98]. Further studies and data supporting use of surfactant in the older population have yet to be conducted and published.

see also Respiratory Care and Respiratory Care in the Neonate

Discussion Questions and Cases

To submit interesting cases which display thoughtful patient management please contact the editors at NaT@eapsa.org.

What are common diseases that cause respiratory failure in a neonate and child?

What physiologic parameters support the need for ECLS?

What are contraindications for providing ECLS support?

In a neonate, what preoperative work up is needed prior to institution of ECLS?

What physiologic parameters support Venoarterial vs. venovenous cannulation?

What effects does extracorporeal flow have upon a neonate? a child?

What is a typical ECLS circuit composed of?

In prenatal consultation of a fetus with congenital diaphragmatic hernia, what information would you discuss with the parents?

If a patient is on ECLS support and the perfusionist tells you the pump is "cutting out"- what steps can you take?

What if the patient becomes hypoxic?

What if there is air in the circuit?

Additonal questions are in SCORE Extracorporeal Life Support conference prepCongential Diaphragmatic Hernia conference prep

Pulmonary Hypoplasia/Hypertension conference prep

References

  1. Bartlett RH et al: Extracorporeal membrane oxygenation (ECMO) cardiopulmonary support in infancy. Trans Am Soc Artif Intern Organs 22:80, 1976  [PMID:951895]
  2. Dalton HJ: Extracorporeal life support: moving at the speed of light. Respir Care 56:1445, 2011  [PMID:21944690]
  3. http://www.elso.org/Portals/0/IGD/Archive/FileManager/929122ae88cusersshyerdocumentselsoguidelinesgeneralalleclsversion1.3.pdf. Last Accessed December 24, 2015
  4. Paden ML et al: Extracorporeal Life Support Organization Registry Report 2012. ASAIO J 59:202, 2013 May-Jun  [PMID:23644605]
  5. Peek GJ et al: Randomised controlled trial and parallel economic evaluation of conventional ventilatory support versus extracorporeal membrane oxygenation for severe adult respiratory failure (CESAR). Health Technol Assess 14:1, 2010  [PMID:20642916]
  6. Palanzo D et al: Evolution of the extracorporeal life support circuitry. Artif Organs 34:869, 2010  [PMID:21092028]
  7. Gadepalli SK, Hirschl RB: Extracorporeal life support: updates and controversies. Semin Pediatr Surg 24:8, 2015  [PMID:25639803]
  8. Hayes D et al: Venovenous ECMO as a bridge to lung transplant and a protective strategy for subsequent primary graft dysfunction. J Artif Organs 16:382, 2013  [PMID:23508264]
  9. Hayes D et al: Ambulatory venovenous extracorporeal respiratory support as a bridge for cystic fibrosis patients to emergent lung transplantation. J Cyst Fibros 11:40, 2012  [PMID:22035707]
  10. Hoopes CW et al: Extracorporeal membrane oxygenation as a bridge to pulmonary transplantation. J Thorac Cardiovasc Surg 145:862, 2013  [PMID:23312979]
  11. Lehr CJ et al: Ambulatory extracorporeal membrane oxygenation as a bridge to lung transplantation: walking while waiting. Chest 147:1213, 2015  [PMID:25940249]
  12. Sinard JM and Bartlett RH: Extracorporeal Life Support in Critical Care Medicine.Journal of Critical Care 5(4):265-278.1990
  13. Bartlett, R. (2012). Physiology of Extracorporeal Life Support. In Ecmo: Extracorporeal Cardiopulmonary Support in Critical Care, Red Book (4th ed.). Ann Arbor, Michigan: Extracorporeal Life Support Organization.
  14. Hilt, T., Graves, D., & Zwishenberger, J. (1999). ECMO Physiology. In ECMO Specialist Training Manual (2nd ed., pp. 19-40). Ann Arbor, Michigan: Extracorporeal LIfe Support Organization.
  15. Brown, KL., Dalton HJ. Extracorporeal Cardiopulmonary Resuscitation: ECPR. In ECMO: Extracorporeal Cardiopulmonary Support in Critical Care, Red Book (4th ed.). Ann Arbor, Michigan: 331-340.
  16. Montoya JP, Merz SI, Bartlett RH: A standardized system for describing flow/pressure relationships in vascular access devices. ASAIO Trans 37:4, 1991 Jan-Mar  [PMID:2012719]
  17. Bahrami KR, Van Meurs KP: ECMO for neonatal respiratory failure. Semin Perinatol 29:15, 2005  [PMID:15921148]
  18. Frenckner B, Radell P: Respiratory failure and extracorporeal membrane oxygenation. Semin Pediatr Surg 17:34, 2008  [PMID:18158140]
  19. Rivera RA, Butt W, Shann F: Predictors of mortality in children with respiratory failure: possible indications for ECMO. Anaesth Intensive Care 18:385, 1990  [PMID:2221333]
  20. Marsh TD, Wilkerson SA, Cook LN: Extracorporeal membrane oxygenation selection criteria: partial pressure of arterial oxygen versus alveolar-arterial oxygen gradient. Pediatrics 82:162, 1988  [PMID:3399289]
  21. Krummel TM et al: Alveolar-arterial oxygen gradients versus the Neonatal Pulmonary Insufficiency Index for prediction of mortality in ECMO candidates. J Pediatr Surg 19:380, 1984  [PMID:6541249]
  22. Stolar CJ, Snedecor SM, Bartlett RH: Extracorporeal membrane oxygenation and neonatal respiratory failure: experience from the extracorporeal life support organization. J Pediatr Surg 26:563, 1991  [PMID:2061812]
  23. Smith DW et al: High-frequency jet ventilation in children with the adult respiratory distress syndrome complicated by pulmonary barotrauma. Pediatr Pulmonol 15:279, 1993  [PMID:8327286]
  24. Baumgart S et al: Diagnosis-related criteria in the consideration of extracorporeal membrane oxygenation in neonates previously treated with high-frequency jet ventilation. Pediatrics 89:491, 1992  [PMID:1741226]
  25. Field DJ, Pearson GA: Neonatal extra corporeal membrane oxygenation (ECMO). J Perinat Med 22:565, 1994  [PMID:7674113]
  26. Makdisi G, Wang IW: Extra Corporeal Membrane Oxygenation (ECMO) review of a lifesaving technology. J Thorac Dis 7:E166, 2015  [PMID:26380745]
  27. Bartlett RH et al: Extracorporeal circulation in neonatal respiratory failure: a prospective randomized study. Pediatrics 76:479, 1985  [PMID:3900904]
  28. Sinard JM, Bartlett RH: Extracorporeal membrane oxygenation (ECMO): prolonged bedside cardiopulmonary bypass. Perfusion 5:239, 1990  [PMID:10149492]
  29. O'Rourke PP et al: Extracorporeal membrane oxygenation and conventional medical therapy in neonates with persistent pulmonary hypertension of the newborn: a prospective randomized study. Pediatrics 84:957, 1989  [PMID:2685740]
  30. UK collaborative randomised trial of neonatal extracorporeal membrane oxygenation. UK Collaborative ECMO Trail Group. Lancet 348:75, 1996  [PMID:8676720]
  31. Green TP et al: The impact of extracorporeal membrane oxygenation on survival in pediatric patients with acute respiratory failure. Pediatric Critical Care Study Group. Crit Care Med 24:323, 1996  [PMID:8605808]
  32. Crow S, Fischer AC, Schears RM: Extracorporeal life support: utilization, cost, controversy, and ethics of trying to save lives. Semin Cardiothorac Vasc Anesth 13:183, 2009  [PMID:19713206]
  33. Elliott SJ: Neonatal extracorporeal membrane oxygenation: how not to assess novel technologies. Lancet 337:476, 1991  [PMID:1671482]
  34. Gupta M, Shanley TP, Moler FW: Extracorporeal life support for severe respiratory failure in children with immune compromised conditions. Pediatr Crit Care Med 9:380, 2008  [PMID:18496413]
  35. Wiktor AJ et al: Prolonged VV ECMO (265 Days) for ARDS without technical complications. ASAIO J 61:205, 2015 Mar-Apr  [PMID:25423122]
  36. Kays DW et al: Extracorporeal life support in patients with congenital diaphragmatic hernia: how long should we treat? J Am Coll Surg 218:808, 2014  [PMID:24655875]
  37. Shekar K et al: To ventilate, oscillate, or cannulate? J Crit Care 28:655, 2013  [PMID:23827735]
  38. Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome. The Acute Respiratory Distress Syndrome Network. N Engl J Med 342:1301, 2000  [PMID:10793162]
  39. Wilson JG, Matthay MA: Mechanical ventilation in acute hypoxemic respiratory failure: a review of new strategies for the practicing hospitalist. J Hosp Med 9:469, 2014  [PMID:24733692]
  40. Cortes GA, Marini JJ: Update: adjuncts to mechanical ventilation. Curr Opin Anaesthesiol 25:156, 2012  [PMID:22228420]
  41. Gander JW et al: Limb ischemia after common femoral artery cannulation for venoarterial extracorporeal membrane oxygenation: an unresolved problem. J Pediatr Surg 45:2136, 2010  [PMID:21034934]
  42. Speggiorin S et al: Experience with the Avalon® bicaval double-lumen veno-venous cannula for neonatal respiratory ECMO. Perfusion 30:250, 2015  [PMID:24972812]
  43. Barrett CS et al: Outcomes of neonates undergoing extracorporeal membrane oxygenation support using centrifugal versus roller blood pumps. Ann Thorac Surg 94:1635, 2012  [PMID:22921236]
  44. O'Meara LC et al: Anti-xa directed protocol for anticoagulation management in children supported with extracorporeal membrane oxygenation. ASAIO J 61:339, 2015 May-Jun  [PMID:25710768]
  45. Niebler RA et al: Antithrombin replacement during extracorporeal membrane oxygenation. Artif Organs 35:1024, 2011  [PMID:22097980]
  46. Perry R et al: Antithrombin III administration in neonates with congenital diaphragmatic hernia during the first three days of extracorporeal membrane oxygenation. J Pediatr Surg 48:1837, 2013  [PMID:24074654]
  47. Jaksic T et al: A.S.P.E.N. Clinical guidelines: nutrition support of neonates supported with extracorporeal membrane oxygenation. JPEN J Parenter Enteral Nutr 34:247, 2010 May-Jun  [PMID:20467006]
  48. Desmarais TJ et al: Enteral nutrition in neonatal and pediatric extracorporeal life support: a survey of current practice. J Pediatr Surg 50:60, 2015  [PMID:25598094]
  49. Fuehner T et al: Extracorporeal membrane oxygenation in awake patients as bridge to lung transplantation. Am J Respir Crit Care Med 185:763, 2012  [PMID:22268135]
  50. Abrams D et al: Early mobilization of patients receiving extracorporeal membrane oxygenation: a retrospective cohort study. Crit Care 18:, 2014  [PMID:24571627]
  51. 1. Thomas Pranikoff, M.H., Vascular Access for Extracorporeal Support. ECMO Extracorporeal Cardiopulmonary Support in Critical Care
  52. 1. Brittany DeBerry, M., et al., Emergencies during ECLS and Their Management. ECMO Extracorporeal Cardiopulmonary Support in Critical Care, ed. M. Krisa Van Meurs, et al. Vol. 3rd Edition. 2005, Ann Arbor, Michigan: ELSO.
  53. Downard CD et al: Impact of AMICAR on hemorrhagic complications of ECMO: a ten-year review. J Pediatr Surg 38:1212, 2003  [PMID:12891495]
  54. Puligandla PS et al: Management of congenital diaphragmatic hernia: A systematic review from the APSA outcomes and evidence based practice committee. J Pediatr Surg 50:1958, 2015  [PMID:26463502]
  55. Partridge EA et al: Timing of repair of congenital diaphragmatic hernia in patients supported by extracorporeal membrane oxygenation (ECMO). J Pediatr Surg 50:260, 2015  [PMID:25638614]
  56. Cannon, J.W. et al., Transport of the ECMO Patient: From Concept to Implementation. In ECMO: Extracorporeal Cardiopulmonary Support in Critical Care, Red Book (4th ed.). Ann Arbor, Michigan: 451-478.
  57. Vaja R et al: Five-year experience with mobile adult extracorporeal membrane oxygenation in a tertiary referral center. J Crit Care 30:1195, 2015  [PMID:26329881]
  58. Suttner, DM., Short, BL. Neonatal Respiratory ECLS. In ECMO: Extracorporeal Cardiopulmonary Support in Critical Care, Red Book (4th ed.). Ann Arbor, Michigan: 225-264.
  59. Neal JR et al: Using Daily Plasma-Free Hemoglobin Levels for Diagnosis of Critical Pump Thrombus in Patients Undergoing ECMO or VAD Support. J Extra Corpor Technol 47:103, 2015  [PMID:26405358]
  60. Cornelius AM et al: Plasma-free hemoglobin levels in advanced vs. conventional infant and pediatric extracorporeal life support circuits. J Extra Corpor Technol 45:21, 2013  [PMID:23691780]
  61. Annich, G.M., ECMO: Extracorporeal Cardiopulmonary Support in CriticalCare. 4 ed. 2012: Extracoporeal Life Support Organization. 537
  62. Gill MC, Dando H, John D: Is the air handling capability of the quadrox D pump dependent within an ECMO circuit? An in vitro study. J Extra Corpor Technol 42:203, 2010  [PMID:21114223]
  63. Tanaka D et al: Migrated Avalon Veno-Venous Extracorporeal Membrane Oxygenation Cannula: How to Adjust Without Interruption of Flow. J Card Surg 30:865, 2015  [PMID:26358888]
  64. Nishinaka T et al: At least thirty-four days of animal continuous perfusion by a newly developed extracorporeal membrane oxygenation system without systemic anticoagulants. Artif Organs 26:548, 2002  [PMID:12072113]
  65. Nasr DM, Rabinstein AA: Neurologic Complications of Extracorporeal Membrane Oxygenation. J Clin Neurol 11:383, 2015  [PMID:26320848]
  66. Teele SA et al: The Association of Carotid Artery Cannulation and Neurologic Injury in Pediatric Patients Supported With Venoarterial Extracorporeal Membrane Oxygenation* Pediatr Crit Care Med 15:355, 2014  [PMID:24622166]
  67. Gadepalli SK, Lorusso R, Mychaliska GB, Cooley E, Annich G, Gelsomino S, Rycus PT, Thiagarajan RR, Maessen J, Weerwind P, and Hirschl RB on behalf of the ELSO/Euro-ELSO Neurologic Outcomes Working Group. ELSO Registry Stroke Rates in Children on VA ECLS Using Right Common Carotid Artery Ligation: Challenging Dogma? Presented at the Extracorporeal Life Support Conference, 2014.
  68. Doymaz S, Zinger M, Sweberg T: Risk factors associated with intracranial hemorrhage in neonates with persistent pulmonary hypertension on ECMO. J Intensive Care 3:, 2015  [PMID:25705431]
  69. Askenazi DJ et al: Acute kidney injury and renal replacement therapy independently predict mortality in neonatal and pediatric noncardiac patients on extracorporeal membrane oxygenation. Pediatr Crit Care Med 12:e1, 2011  [PMID:20351617]
  70. Zwiers AJ et al: Acute kidney injury is a frequent complication in critically ill neonates receiving extracorporeal membrane oxygenation: a 14-year cohort study. Crit Care 17:, 2013  [PMID:23883698]
  71. Gadepalli SK et al: Acute kidney injury in congenital diaphragmatic hernia requiring extracorporeal life support: an insidious problem. J Pediatr Surg 46:630, 2011  [PMID:21496529]
  72. Selewski DT et al: Fluid overload and fluid removal in pediatric patients on extracorporeal membrane oxygenation requiring continuous renal replacement therapy. Crit Care Med 40:2694, 2012  [PMID:22743776]
  73. Chen H et al: Combination of extracorporeal membrane oxygenation and continuous renal replacement therapy in critically ill patients: a systematic review. Crit Care 18:, 2014  [PMID:25482187]
  74. Waitzer E et al: Neurologic outcome at school entry for newborns treated with extracorporeal membrane oxygenation for noncardiac indications. J Child Neurol 24:801, 2009  [PMID:19196874]
  75. Campbell LR et al: Significance of seizures associated with extracorporeal membrane oxygenation. J Pediatr 119:789, 1991  [PMID:1941388]
  76. Mehta A, Ibsen LM: Neurologic complications and neurodevelopmental outcome with extracorporeal life support. World J Crit Care Med 2:40, 2013  [PMID:24701415]
  77. Lee SH et al: Comparison of Extracorporeal Cardiopulmonary Resuscitation with Conventional Cardiopulmonary Resuscitation: Is Extracorporeal Cardiopulmonary Resuscitation Beneficial? Korean J Thorac Cardiovasc Surg 48:318, 2015  [PMID:26509125]
  78. Lequier L, de Caen A: Pediatric ECPR: standard of care? Resuscitation 83:665, 2012  [PMID:22469750]
  79. SAVE-J Study Group et al: Extracorporeal cardiopulmonary resuscitation versus conventional cardiopulmonary resuscitation in adults with out-of-hospital cardiac arrest: A prospective observational study. Resuscitation Feb 12  [PMID:24530251]
  80. Bryner B et al: An extracorporeal artificial placenta supports extremely premature lambs for 1 week. J Pediatr Surg 50:44, 2015  [PMID:25598091]
  81. Major TC et al: Development and hemocompatibility testing of nitric oxide releasing polymers using a rabbit model of thrombogenicity. J Biomater Appl Jun 16  [PMID:24934500]
  82. Alghanem F et al: The Implantable Pediatric Artificial Lung: Interim Report on the Development of an End-Stage Lung Failure Model. ASAIO J 61:453, 2015 Jul-Aug  [PMID:25905495]
  83. Obeid NR et al: Organ donation after cardiac determination of death (DCD): a swine model. ASAIO J 55:562, 2009 Nov-Dec  [PMID:19770801]
  84. Magliocca JF et al: Extracorporeal support for organ donation after cardiac death effectively expands the donor pool. J Trauma 58:1095, 2005  [PMID:15995454]
  85. O'Reilly M, Thébaud B: Stem cells for the prevention of neonatal lung disease. Neonatology 107:360, 2015  [PMID:26044105]
  86. Longmire TA et al: Efficient derivation of purified lung and thyroid progenitors from embryonic stem cells. Cell Stem Cell 10:398, 2012  [PMID:22482505]
  87. Kotton DN, Morrisey EE: Lung regeneration: mechanisms, applications and emerging stem cell populations. Nat Med 20:822, 2014  [PMID:25100528]
  88. Weiss DJ et al: An official American Thoracic Society workshop report: stem cells and cell therapies in lung biology and diseases. Ann Am Thorac Soc 12:S79, 2015  [PMID:25897748]
  89. Roszell B et al: Efficient derivation of alveolar type II cells from embryonic stem cells for in vivo application. Tissue Eng Part A 15:3351, 2009  [PMID:19388834]
  90. Vadasz S et al: Second and third trimester amniotic fluid mesenchymal stem cells can repopulate a de-cellularized lung scaffold and express lung markers. J Pediatr Surg 49:1554, 2014  [PMID:25475793]
  91. Hupp SR, Turner DA, Rehder KJ: Is there still a role for high-frequency oscillatory ventilation in neonates, children and adults? Expert Rev Respir Med 9:603, 2015  [PMID:26290121]
  92. Ferguson ND et al: High-frequency oscillation in early acute respiratory distress syndrome. N Engl J Med 368:795, 2013  [PMID:23339639]
  93. High-frequency oscillatory ventilation compared with conventional mechanical ventilation in the treatment of respiratory failure in preterm infants. The HIFI Study Group. N Engl J Med 320:88, 1989  [PMID:2643039]
  94. Swami A, Keogh BF: The pulmonary physician and critical care. 2. The injured lung: conventional and novel respiratory therapy. Thorax 47:555, 1992  [PMID:1412102]
  95. Findlay RD, Taeusch HW, Walther FJ: Surfactant replacement therapy for meconium aspiration syndrome. Pediatrics 97:48, 1996  [PMID:8545223]
  96. Shein SL et al: Surfactant Administration During Pediatric Extracorporeal Membrane Oxygenation. ASAIO J 61:682, 2015 Nov-Dec  [PMID:26181713]
  97. Mok YH et al: Adjunctive treatments in pediatric acute respiratory distress syndrome. Expert Rev Respir Med 8:703, 2014  [PMID:25119574]
  98. West, J. (2000). Respiratory physiology: The essentials (6th ed.). Philadelphia: Lippincott Williams and Wilkins.
  99. Biscotti M et al: Hybrid configurations via percutaneous access for extracorporeal membrane oxygenation: a single-center experience. ASAIO J 60:635, 2014 Nov-Dec  [PMID:25232764]
  100. Chauhan S, Subin S: Extracorporeal membrane oxygenation, an anesthesiologist's perspective: physiology and principles. Part 1. Ann Card Anaesth 14:218, 2011 Sep-Dec  [PMID:21860197]
  101. Conrad, SA, Rycus PT. The Registry of the Extracorporeal Life Support Organization. In ECMO: Extracorporeal Cardiopulmonary Support in Critical Care, Red Book (4th ed.). Ann Arbor, Michigan: 87-104.
  102. Czerwonko ME et al: Cardiovascular perforation during placement of an Avalon Elite® Bicaval dual lumen ECMO cannula in a newborn. J Card Surg 30:370, 2015  [PMID:25545684]
  103. Doll N et al: Five-year results of 219 consecutive patients treated with extracorporeal membrane oxygenation for refractory postoperative cardiogenic shock. Ann Thorac Surg 77:151, 2004  [PMID:14726052]
  104. Haley MJ et al: Percutaneous distal perfusion of the lower extremity after femoral cannulation for venoarterial extracorporeal membrane oxygenation in a small child. J Pediatr Surg 44:437, 2009  [PMID:19231552]
  105. Huang SC et al: Pressure criterion for placement of distal perfusion catheter to prevent limb ischemia during adult extracorporeal life support. J Thorac Cardiovasc Surg 128:776, 2004  [PMID:15514615]
  106. Johnson SM et al: Increased risk of cardiovascular perforation during ECMO with a bicaval, wire-reinforced cannula. J Pediatr Surg 49:46, 2014  [PMID:24439579]
  107. Kim ES, Stolar CJ: ECMO in the newborn. Am J Perinatol 17:345, 2000  [PMID:12141521]
  108. Kohler K et al: ECMO cannula review. Perfusion 28:114, 2013  [PMID:23257678]
  109. Maclaren G et al: Extracorporeal membrane oxygenation for refractory septic shock in children: one institution's experience. Pediatr Crit Care Med 8:447, 2007  [PMID:17693912]
  110. Mols G et al: Extracorporeal membrane oxygenation: a ten-year experience. Am J Surg 180:144, 2000  [PMID:11044532]
  111. Patry C et al: Adjunctive therapies for treatment of severe respiratory failure in newborns. Klin Padiatr 227:28, 2015  [PMID:25565196]
  112. Pranikoff and Hines. (2012). Vascular Access for Extracorporeal Support. In Ecmo: Extracorporeal Cardiopulmonary Support in Critical Care, Red Book (4th ed.). Ann Arbor, Michigan: Extracorporeal Life Support Organization.
  113. Quarti A et al: Femoral artery cannulation through a side graft in extracorporeal membrane oxygenation. Heart Lung Vessel 6:125, 2014  [PMID:25024995]
  114. Rich PB et al: A prospective comparison of atrio-femoral and femoro-atrial flow in adult venovenous extracorporeal life support. J Thorac Cardiovasc Surg 116:628, 1998  [PMID:9766592]
  115. Sinard JM et al: Evaluation of extracorporeal perfusion catheters using a standardized measurement technique--the M-number. ASAIO Trans 37:60, 1991 Apr-Jun  [PMID:1854554]
  116. Spurlock DJ et al: A simple technique to prevent limb ischemia during veno-arterial ECMO using the femoral artery: the posterior tibial approach. Perfusion 27:141, 2012  [PMID:22143092]
  117. Subramanian S et al: Comparison of wire-reinforced and non-wire-reinforced dual-lumen catheters for venovenous ECMO in neonates and infants. ASAIO J 59:81, 2013 Jan-Feb  [PMID:23263340]
  118. Willson DF, Notter RH: The future of exogenous surfactant therapy. Respir Care 56:1369, 2011  [PMID:21944686]
  119. Zamora IJ et al: Outcomes comparing dual-lumen to multisite venovenous ECMO in the pediatric population: the Extracorporeal Life Support Registry experience. J Pediatr Surg 49:1452, 2014  [PMID:25280645]

Media

Origen venovenous cannulas

guidelines to venoarterial cannula

These are suggestions for venoarterial cannula size as a function of patient weight. (from Michael McMullen, M.D. Seattle Children’s Hospital)

guidelines to venovenous cannula

These are suggestions for venoveous cannula size as a function of patient weight. (from Michael McMullen, M.D. Seattle Children’s Hospital)

cardiac ECLS By diagnoses 0-30 days

These data demonstrate the number of ECLS cases by diagnosis among patients age 0 to 30 days of age with cardiac failure. (from the ELSO International Registy report, January, 2016)

cardiac ECLS by diagnosis 30 Days to < 16 Years

These data demonstrate the number of ECLS cases by diagnosis among patients age 30 days to less than 16 years with cardiac failure. (from the ELSO International Registy report, January, 2016)

neonatal respiratory runs by diagnosis

These ELSO data demonstrate the number of ECLS cases in neonatal respiratory failure patients as a function of diagnosis. (from the ELSO Registry Report, January, 2016)

pediatric respiratory runs by diagnosis

These ELSO data demonstrate the number of ECLS cases in pediatric respiratory failure patients as a function of diagnosis. (from the ELSO Registry Report, January, 2016)

Extracorporeal Life Support is a sample topic from the Pediatric Surgery NaT.

To view other topics, please or purchase a subscription.

APSA Pediatric Surgery Library combines Pediatric Surgery Not a Textbook (NaT) with APSA ExPERT, a powerful platform for earning MOC CME credits -- all powered by Unbound Medicine. Learn more.

Last updated: August 1, 2018

Citation

TY - ELEC T1 - Extracorporeal Life Support ID - 829025 A1 - Finck,Christine,MD AU - Gadepalli,Samir,MS, MD, MBA AU - Ruzic,Ana,MD AU - Rader,Christine,MD Y1 - 2018/08/01/ PB - Pediatric Surgery NaT UR - https://www.unboundmedicine.com/medline/view/Pediatric-Surgery-NaT/829025/all/Extracorporeal_Life_Support ER -
